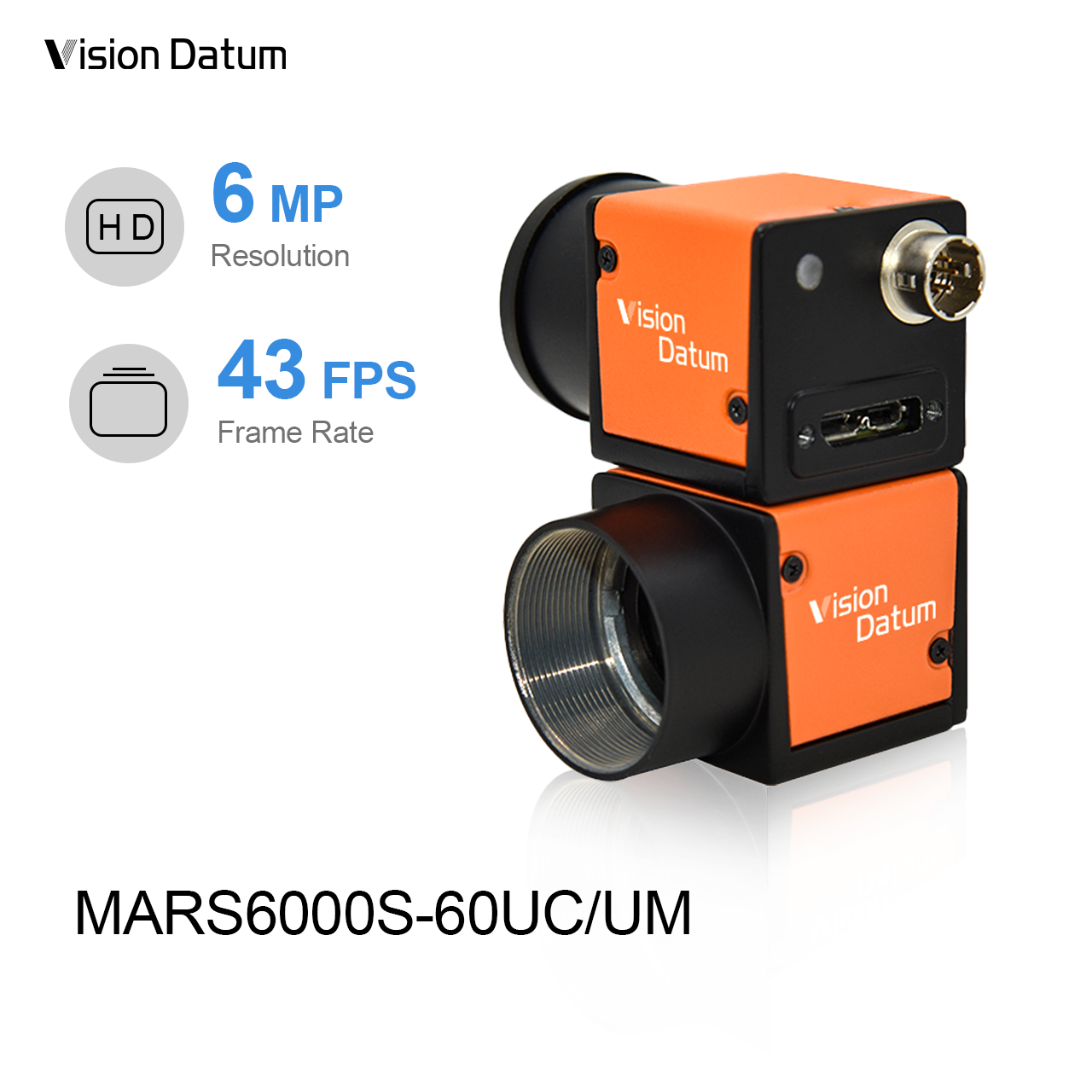

IMX178 6MP 43FPS 2.4μm 1/1.8" Rolling Shutter Camera

IMX178 6MP 43FPS 2.4μm 1/1.8" Rolling Shutter Camera

Regular price $330.00
Regular price Sale price $330.00
Sale Sold out

View full details
6 mega pixels area scan camera

This machine vision camera equipped with the high-performance sony IMX178 sensor.Featuring a compact and robust design, this camera is built to withstand the rigors of industrial environments. The camera's versatility is further enhanced by its compatibility with various lenses, allowing you to adapt it to your specific imaging requirements.

With its user-friendly interface and intuitive controls, the Machine Vision Camera offers effortless operation and seamless integration into your existing systems. It has 64 MB local memory for burst transmission and retransmission,USB 3.0 interface with plug and play capability,USB3.0 power supply

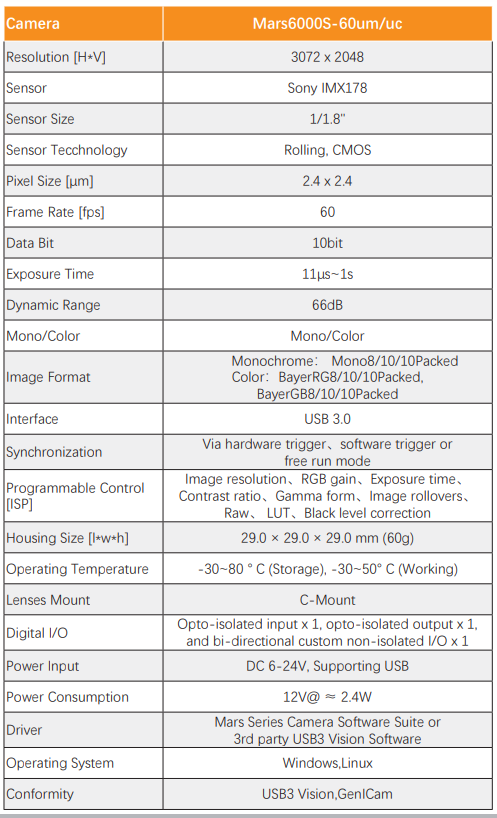

Camera Parameters:

Sensor Vendor:Sony
Shutter:Rolling Shutter
Sensor Size:1/1.8"
Sensor Type:CMOS
Resolution:3072 px x 2048 px
Pixel size:2.4 μm x 2.4 μm
Frame Rate:60 fps
Mono/Color:Color and Mono
Operating System:Windows,Linux
Lens Mount:C-mount (CS-Mount can be customized)
Conformity:USB3 Vision and GenICam
Driver , SDK:Mars Series Camera Secondary Development Kit(iCentral)or Third-party Software meeting with USB3 Vision Protocol

Package List:

1 x Industrial Camera (No Include Lens)
1 x I/O Cable
1 x standard Date Cable(Optional inquire length.)
