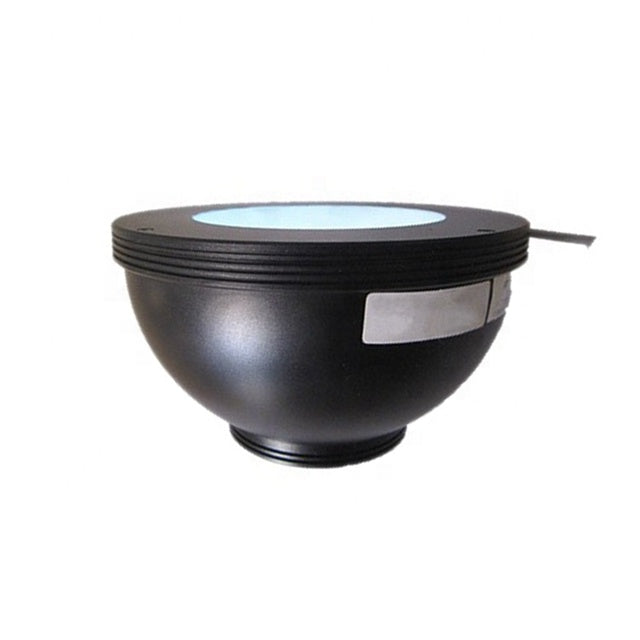

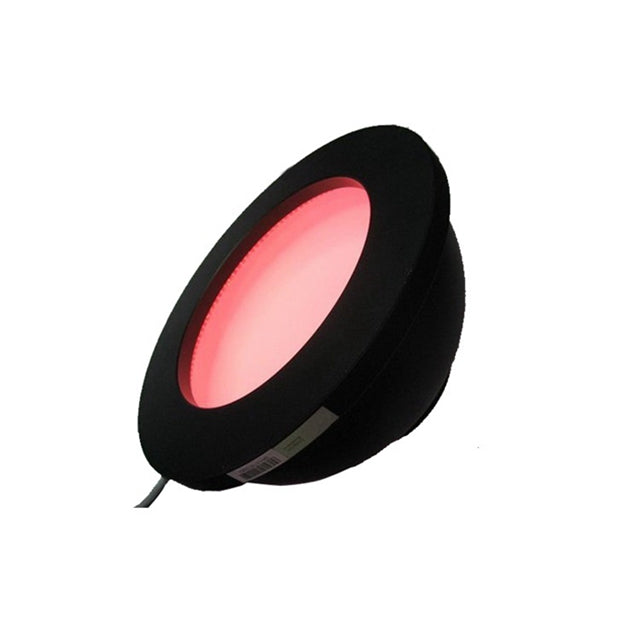

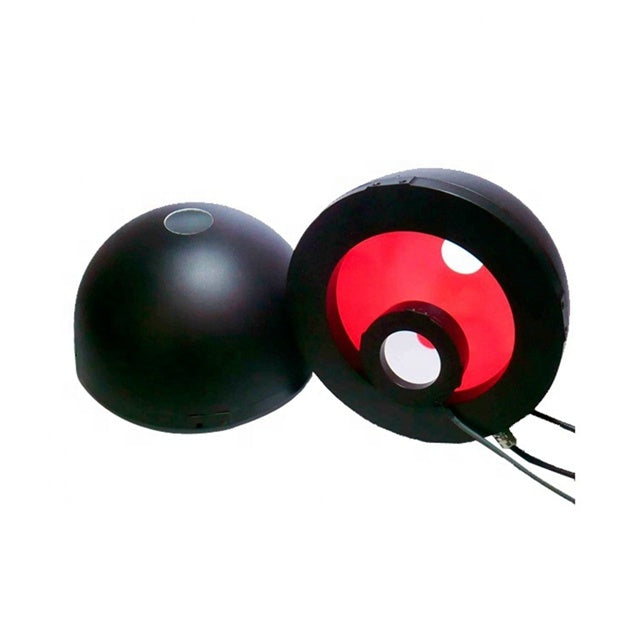

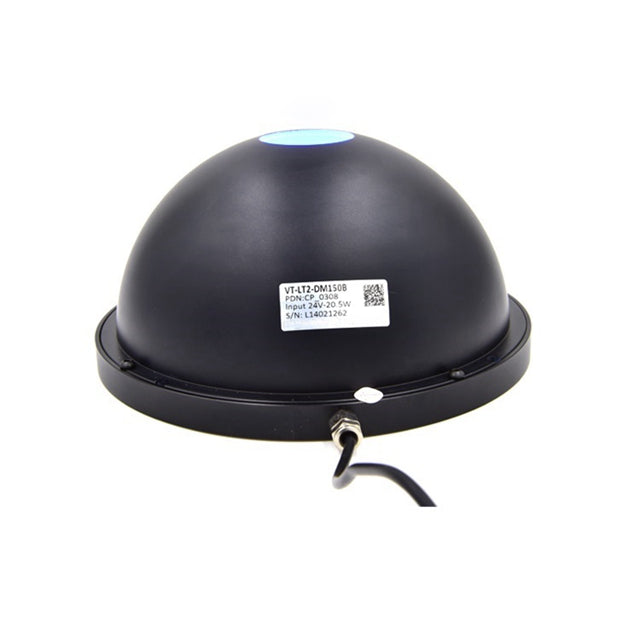

DM Series Illuminated Telescopic Industrial Led Lamp dome light machine vision

DM Series Illuminated Telescopic Industrial Led Lamp dome light machine vision

$313.00 USD
$0.00 USD $313.00 USD
Sale Sold out
Color
Outer Diam.
Type


DM Series Dome Shape Lights

Warm Tip:

1.The color, cooling method, and emitting surfcace length of the light can be customized.

2.Please click the specific model name for more information.

Model

Available Colors

Outer Diam.

(mm)

Inner Diam.

(mm)

Height

(mm)

DM44(W/B/G/R)

Red/Green/Blue/White

44

12

35

DM70(W/B/G/R)

Red/Green/Blue/White

70

12

32

DM100(W/B/G/R)

Red/Green/Blue/White

116

25

57

DM120(W/B/G/R)

Red/Green/Blue/White

134

35

62.5

DM150(W/B/G/R)

Red/Green/Blue/White

166

35

81

DM180(W/B/G/R)

Red/Green/Blue/White

198

30

90

DM250(W/B/G/R)

Red/Green/Blue/White

266

50

130

Accessories

Accessories are optional, see below for details

Lead Time

2-3 weeks

Warranty

1 Year

View full details

Accessories

For specific accessories parameters, please click the corresponding accessories 'Get' button

Diffuser

To be mounted in front of the LED lighting.
Used to soften the lighting output, so as to reduce the
glares on specular surface.

◆ The light sources that can be added with a diffuser plate include Bar light, ring light, and four-sided adjustable Square Bar light.

◆ The diffuser version can be matched according to the shape and size of the light source.

Get

Polarizer

Polarizer for Vision Datum Standard Bar Light / Ring Light with a high transmission and polarization.


Used to create a relatively non-directional light.
Polarizer are used in particular when disturbing reflections on e.g.liquid, glass or smooth reflective plastic surfaces as well as shiny metallic materials are to be avoided.


The polarizing plate can be configured to various ring light, Bar light, and area light source, and used in conjunction with the polarizer on the lens to eliminate the surface reflection of light.

Get

Light source extension cable

The light source extension cable is used to connect the light source and the controller.

Various lengths and other specifications of wire can be customized according to customer requirements.


• The interface can be divided into standard Pin plug connector universal extension cable and line-light aviation plug extension cable.

Get
