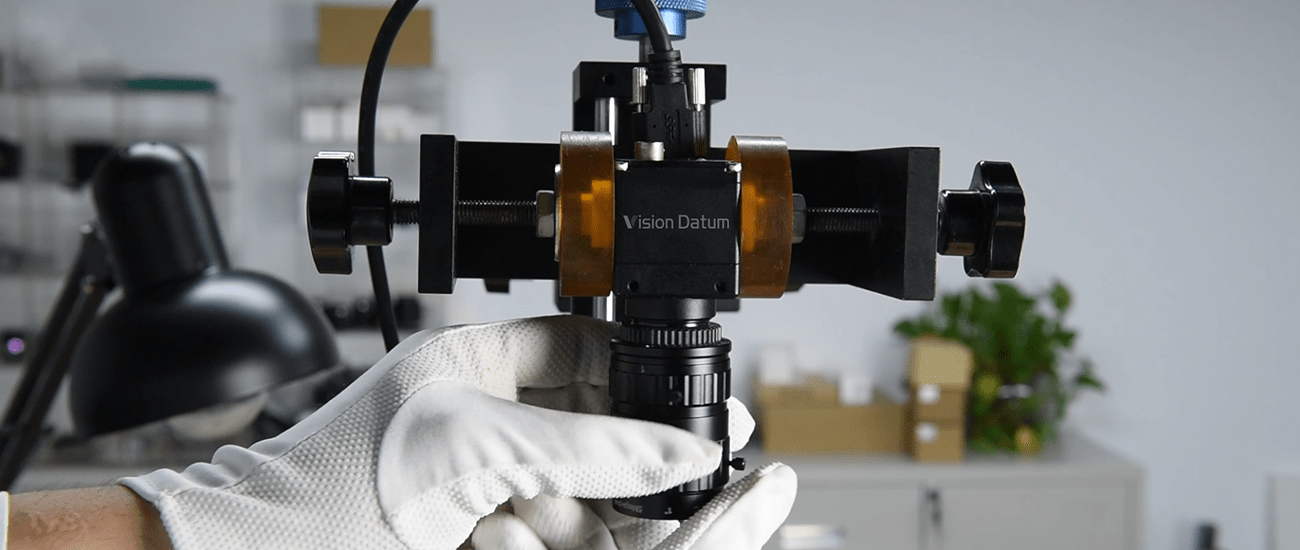

IR Corrected Lenses vs. Standard Lenses: For RGB-NIR Cameras

IR Corrected Lenses(Day-Night Confocal Lenses): Clear Focus in Both Visible and Near-Infrared Imaging

In modern machine vision and surveillance, capturing clear, accurate images across different lighting conditions is essential. Standard lenses often struggle to stay in focus when switching between visible light and near-infrared (NIR) light. This is because these types of light have different focal points.

This challenge has led to the creation of IR Corrected Lenses. These lenses maintain a sharp focus without requiring adjustments. They can effectively capture both visible and NIR images.



Why Standard Lenses Fall Short of Dual-Wavelength Imaging

The focal plane of many conventional lenses changes based on the light's wavelength. Chromatic aberration causes visible light and NIR light to focus at different points. This means an object that looks sharp in visible light may appear blurry in NIR imaging.

Standard lenses require manual refocusing to achieve clear focus in both spectra. This can pose a challenge in dynamic imaging scenarios, particularly during rapid or ongoing surveillance.

Standard lenses are primarily designed to focus visible light onto the image sensor. However, because CCD and CMOS sensors are also sensitive to infrared (IR) wavelengths, images can appear softer or slightly out of focus when near-infrared (NIR) and infrared light is present in the scene. This happens because standard lenses aren’t optimized to bring IR light to the same focal point as visible light, which can reduce image sharpness and clarity in situations where IR light is prominent.

The Advantage of IR Corrected Lenses

Designers create IR-corrected lenses, also known as Day-night confocal lenses, to solve this problem. They incorporate specialized optical elements and coatings that minimize the chromatic aberration between visible and NIR light. This design helps them keep a steady focal point across different wavelengths. This way, both color and NIR images stay sharp without needing to refocus.

This feature is particularly beneficial in applications where clear imaging in low-light or nighttime conditions is essential. NIR light gives useful image data in the dark. This makes confocal lenses great for 24/7 surveillance, machine vision, and quality control checks.

Key Benefits of IR Corrected Lenses

1. Consistent Clarity: A clear focus in visible and NIR wavelengths allows easy switching between lighting conditions. This does not reduce image quality.

2. Improved Efficiency: This removes the need to adjust focus when switching from color to NIR imaging. It makes processes in automated systems easier.

3. Better Low-Light Performance: Confocal lenses capture clear NIR images. This improves night vision systems and reduces the need for extra lighting.

4. Cost and Time Savings: Reduced need for adjustments minimizes downtime and maintenance, translating to better operational efficiency.

Applications in Vision Systems and Surveillance

IR Corrected Lenses are important in areas that need constant monitoring. This includes security, traffic monitoring, and industrial automation. In these areas, machines and cameras work smoothly without manual changes. They capture clear images, even in difficult lighting.

In machine vision, precision is crucial. Confocal lenses are great for finding defects and ensuring quality. They work well with both visible and NIR imaging. By capturing consistent, high-quality images across different wavelengths, they enable accurate inspection, even on mixed material surfaces or objects with varying reflective properties.

Choosing the Right Lens for Your Application

For industries where imaging across both visible and NIR spectra is required, IR Corrected Lenses offer a reliable, efficient solution. When choosing a lens, consider factors like resolution, field of view, and compatibility with your camera. These are important for getting the best performance.

IR Corrected Lenses have a significant benefit. People find these images useful in situations that require clarity in both visible and near-infrared (NIR) light.

They reduce the need for frequent changes. This makes processes smoother and improves the efficiency of systems. These systems depend on clear, high-quality imaging all day long.

This innovation improves clarity and consistency for many applications. It sets a new standard for imaging quality in different lighting conditions.
