IMX264 5MP 68FPS CMOS USB3.0 Global Shutter Camera

Industrial cameras with resolutions from 300,000 pixels to 150,000,000 pixels, high-quality sensors,long transmission distance, black and white, or color can be selected according to your requirements, all equipped with progressive scan and global exposure technology.

This area scan industrial cameras adopt SONY's new generation industrial grade IMX265 image sensor and are equipped with global exposure technology. Gigabit network industrial cameras are used in mobile phone and tablet screen inspection, LED automatic packaging, defect detection, electronic component manufacturing, wafer positioning and other applications

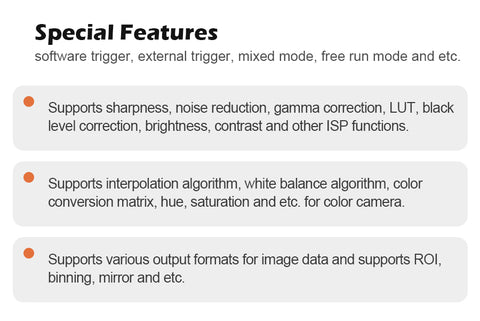

Product Feature

• 5MP @68 fps
• USB 3.0 interface with plug and play capability，USB3.0 power supply
• Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software
• based on these protocol and standard
• Support Windows、Linux
• 64 MB local memory for burst transmission and retransmission

Camera Parameters

Model:MARS5000S-68UC/UM-Lite
Sensor:IMX264
Shutter:Global Shutter
Sensor Size:2/3"
Sensor Type:CMOS
Resolution:2448 px x 2048 px
Pixel size:3.45 μm x 3.45 μm
Frame Rate:68 fps
Mono/Color:Color and Mono
Lens Mount:C-mount(CS-Mount can be customized)
Driver , SDK:Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with USB3 Vision Protocol
Operating System:Windows，Linux
Conformity: USB3 Vision and GenICam

Package List

1 x Industrial Camera (No Include Lens)
1 x I/O Cable
1 x standard Date Cable（Optional inquire length.）
