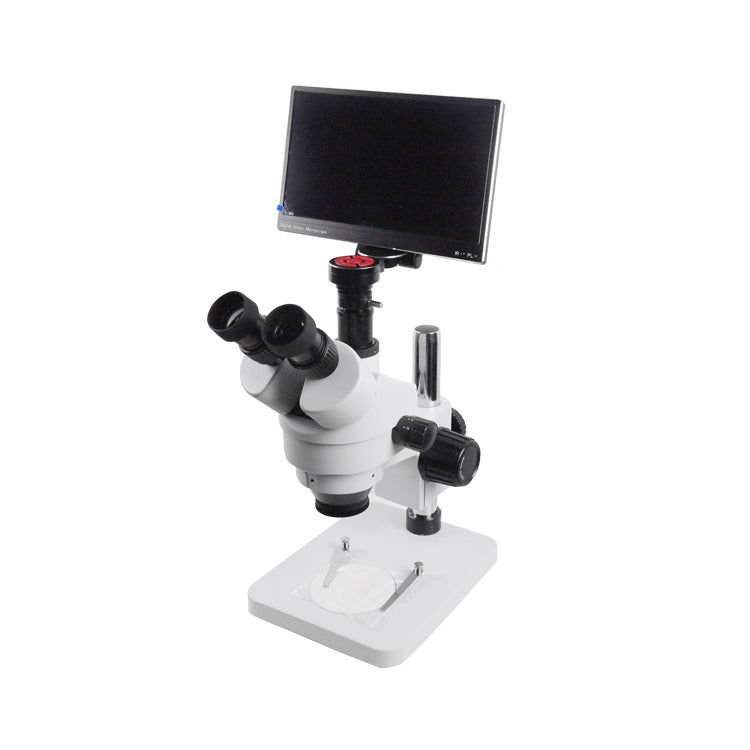

VT-ZM7045T-B1.0116S
It is easy to operate and get the images intuitively, widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement. You can save, enlarge and print the pictures displayed at the screen. After installing the attached drive, you can get measured data of Straight Lines Measurement, Curve Measurement, Arc Length Measurement, Angular Measurement, and the data can be labeled on the image. Meanwhile, these data can be
loaded into Excel or printed out directly.
|
Specification
|
||
|
Zoom Range
|
0.7X-4.5X
|
|
|
Total Magnification
|
7- 45x(Standard), 3.5-270x with optional lens
|
|
|
Working Distance
|
100mm(Standard), 30-287mm with optional lens
|
|
|
Zoom Ratio
|
1:6.4
|
|
|
llumination
|
Fluorescent Ring Light, LED Ring Light, Halogen Lamp.
|
|
|
Eyepiece
|
WF10x / WF15x / WF20x / WF25x / WF30x
|
|
|
Interpupillary Distance
|
54-76mm
|
|
|
Diopter Adjustment
|
±5
|
|
|
Trinocular Body
|
50%/50%, with a vertical phototube
|
|
|
Vision Facilities
|
||
|
Image Sensor
|
2MP 1/2"
|
|
|
Pixel Size
|
3.75um x 3.75um
|
|
|
Image Resolution
|
3.6 μm x 3.6 μm
|
|
|
Maximum fps
|
1920x1080(16:9)、1440x1080(4:3) 4608x2592(16:9)、4608x3456(4:3)
|
|
|
Video Resolution
|
4K@25fps (Clear）、1080P@60fps (Smooth）、720P@120fps (High speed）
|
|
|
Display Screen Resolution
|
1080P @ 60fps
|
|
|
HDMI Resolution
|
1080P @ 60fps
|
|
|
USB Resolution
|
1080P30、720P30、WVGAP60
|
|
|
WIFI Output
|
960x540@30fps, Support Android and iOS (Optional)
|
|
|
Zoom Rate
|
1X-16X Infinite magnification
|
|
|
HDMI Interface
|
TYPE-A
|
|
|
USB Interface
|
TYPE-C USB2.0
|
|
|
TF Card Slot
|
Max support 64GTF card
|
|
|
Lens
|
Suitable for C mount or CS mount
|
|
|
Options & Accessories
|
||
|
Eyepiece
|
WF10x/WF15x/WF20x/
WF25x/WF30x
|
|
|
Stand
|
It varies by specific product
|
|
|
Illuminator
|
Fluorescent ring light, LED ring light, Halogen lamp
|
|
|
Other Parts
|
It varies by specific product.
|
|
|
