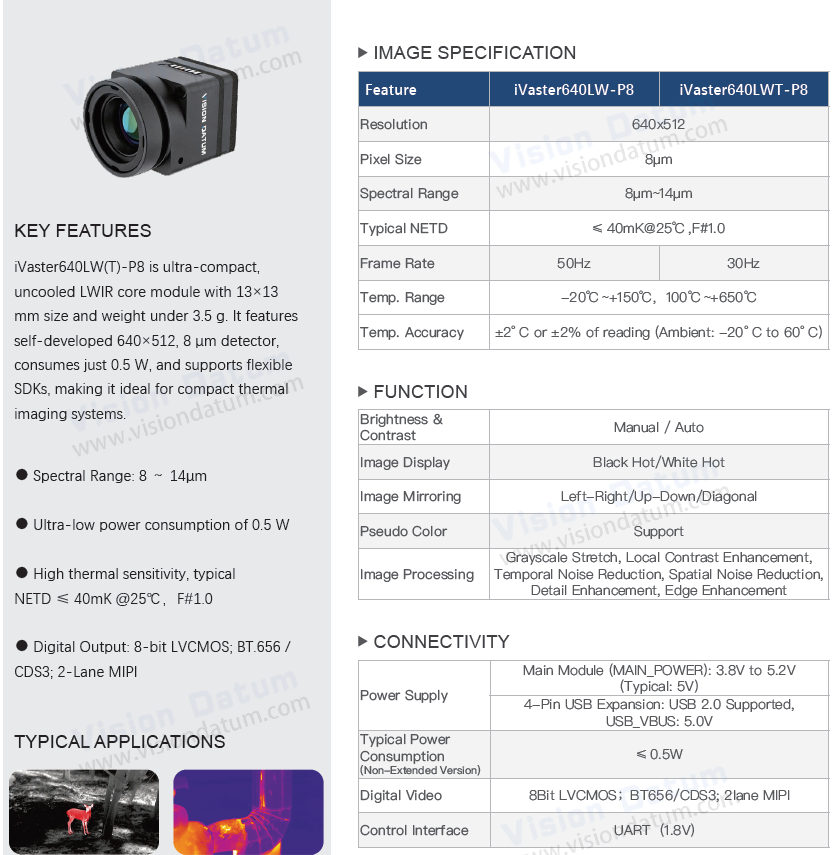

iVaster640LW(T)-P8 UAV Shutterless LWIR Cameras
iVaster640LW(T)-P8 is ultra-compact, uncooled LWIR core module with 13×13mm size and weight under 3.5 g. It features self-developed 640×512, 8 μm detector,consumes just 0.5 W, and supports flexible SDKs, making it ideal for compact thermal imaging systems.
Main Features
● Spectral Range: 8 ～ 14μm
● Ultra-low power consumption of 0.5 W
● High thermal sensitivity, typical NETD ≤ 40mK @25℃，F#1.0
● Digital Output: 8-bit LVCMOS; BT.656 /CDS3; 2-Lane MIPI
Camera Specification
| Model |
Temp
|
Resolution
|
Pixel Size(μm)
|
Frame Rate
|
Shutterless
|
|
iVaster640LW-P8
|
No |
640×512
|
8
|
50Hz
|
No |
|
iVaster640LWT-P8
|
Yes |
640×512
|
8
|
30Hz
|
No |
|
iVa-LW20A
|
Yes |
1920 x 1080
|
8
|
30Hz
|
No
|
|
Feature
|
iVaster640LW-P8
|
iVaster640LWT-P8
|
|
Resolution
|
640×512
|
640×512
|
|
Pixel Size
|
8μm
|
8μm
|
|
Spectral Range
|
8μm~14μm
|
8μm~14μm
|
|
Typical NETD
|
≤ 40mK@25℃, F#1.0
|
≤ 40mK@25℃, F#1.0
|
|
Frame Rate
|
50Hz
|
30Hz
|
|
Temp. Range
|
-20℃\+150℃, 100℃\+650℃
|
-20℃\+150℃, 100℃\+650℃
|
|
Temp. Accuracy
|
±2°C or ±2% of reading (Ambient: -20°C to 60°C)
|
±2°C or ±2% of reading (Ambient: -20°C to 60°C)
|
|
Interface
|
USB 4pin
|
USB 4pin
|
FUNCTION
|
Feature
|
Specification
|
|
|
Manual / Auto
|
|
Image Display
|
Black Hot/White Hot
|
|
Image Mirroring
|
Left-Right/Up-Down/Diagonal
|
|
Pseudo Color
|
Support
|
|
Image Processing
|
Grayscale Stretch, Local Contrast Enhancement, Temporal Noise Reduction, Spatial Noise Reduction, Detail Enhancement, Edge Enhancement
|
CONNECTIVITY
|
Feature
|
Specification
|
|
Power Supply
|
Main Module (MAIN_POWER): 3.8V to 5.2V (Typical: 5V) 4-Pin USB Expansion: USB 2.0 Supported, USB_VBUS: 5.0V
|
|
Typical Power Consumption (Non-Extended Version)
|
≤ 0.5W
|
|
Digital Video
|
8Bit LVCMOS; BT656/CDS3; 2lane MIPI
|
|
Control Interface
|
UART (1.8V)
|
ENVIRONMENT
|
Feature
|
Specification
|
|
Size
|
13×13×13.4mm (< 3.5g)
|
|
Operating Temperature
|
-40°C to +70°C
|
|
Vibration
|
2 g, random vibration, 3 axes, 6 directions
|
|
Shock
|
6 g, 2 ms, half-sine, 3 axes, 6 directions
|
Lens Optional
|
Resolution
|
Focal Length/ F#
|
Lens Type |
FOV (H)× (V)
|
|
640×512
|
3.7mm F1.0
|
Athermal |
90.0°(H)×68.2°(V)
|
|
640×512
|
6.1mm F1.0
|
Athermal |
46.6°(H)×37.6°(V)
|
|
640×512
|
8.7mm F1.0
|
Athermal |
40.0°(H)×32.2°(V)
|
|
640×512
|
11mm F1.0
|
Athermal
|
24.9°(H)×20.0°(V)
|
iVaster640LW(T)-P8 LWIR Cameras Download
