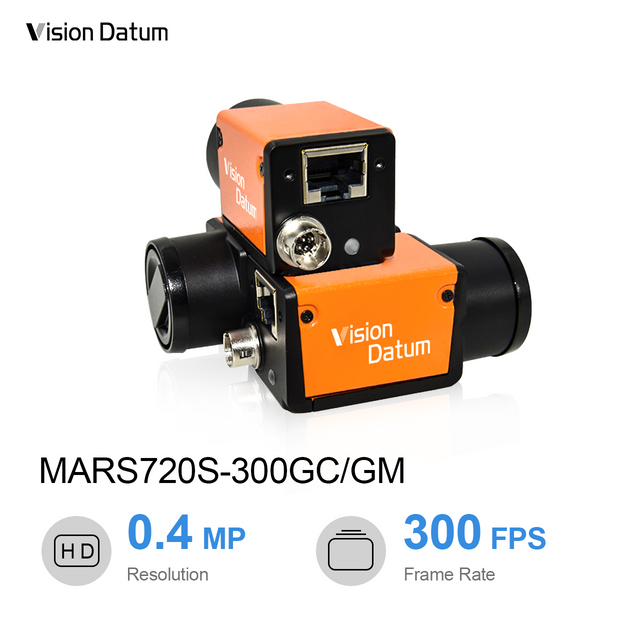

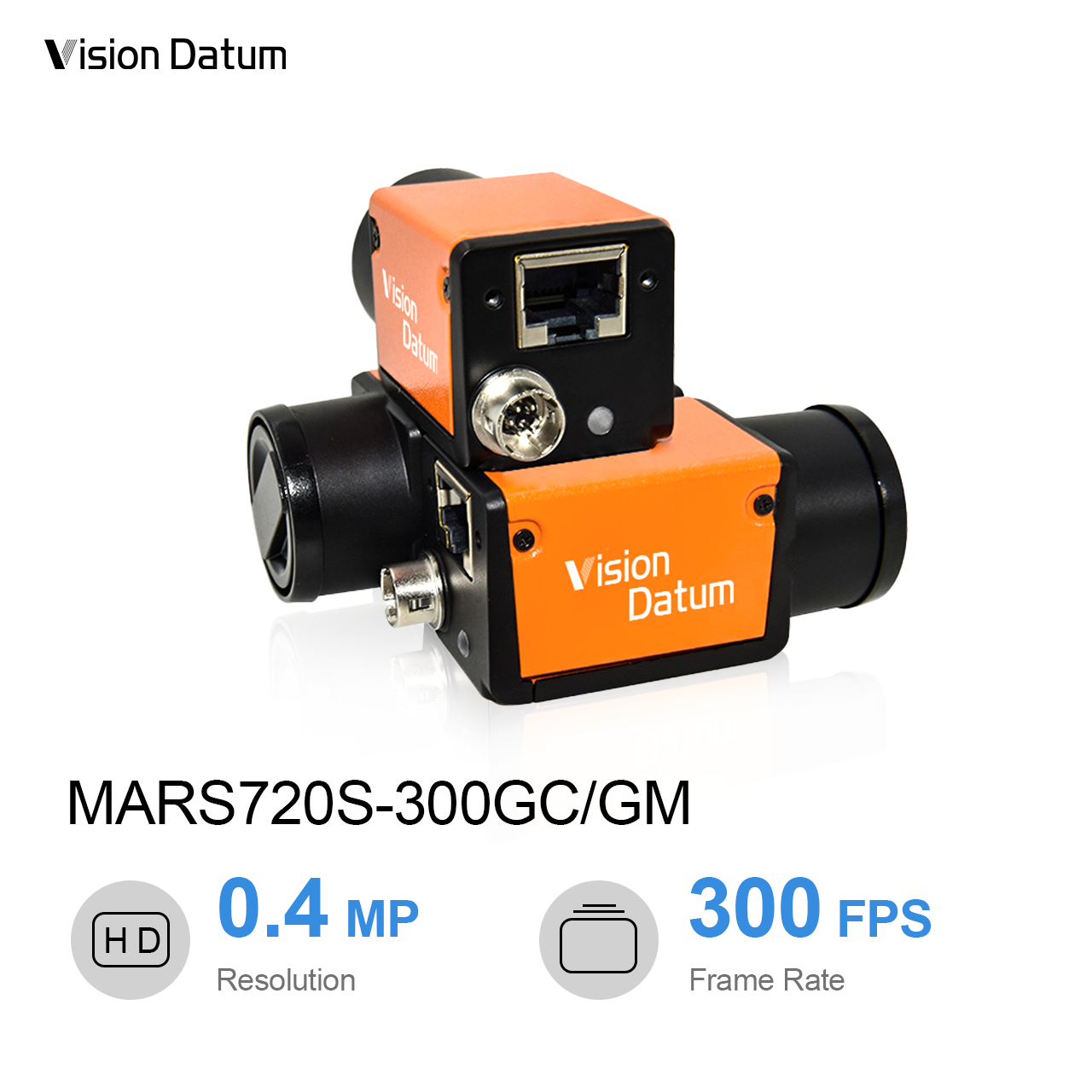

300FPS 0.4MP IMX287 GigE Global Shutter CMOS High Speed Camera

300FPS 0.4MP IMX287 GigE Global Shutter CMOS High Speed Camera

Regular price $360.00
Regular price Sale price $360.00
Sale Sold out
Frame rate
Mono/Color
Add on

View full details

Warm Tip!

If you want to use our golf camera, please confirm whether the golf software is compatible with us before purchasing, or consult us. Our store does not deal with after-sales issues related to software incompatibility;

Product Description

This high speed camera has 0.4 Mega Pixels 300FPS,use Sony IMX287 CMOS sensor GigE Global Shutter, the ultimate tool for capturing fast-paced action with exceptional precision.

High speed camera could capture every detail of a golfer's hitting moment, thereby helping coaches and golfers analyze technical issues such as swing, posture, body movements, etc. By observing high-speed video, golfers can gain a clearer understanding of their golf strokes so they can improve and optimize them.

Product Feature

1)0.4MP @300 fps
2)Mars Series Camera Secondary Development Kit(iCentral)or Third-party Software meeting with GigE Vision Protocol
4)Support Windows、Linux、ARM Operation system
5)Support HALCON、 Vision Pro、 Labview

Camera Parameters

Model:MARS720S-300GC/GM
Sensor Vendor:Sony

Sensor: IMX 287
Shutter:Global Shutter
Sensor Size:1/2.9"
Sensor Type:CMOS
Resolution:720 px x 540 px
Pixel size:6.9 μm x 6.9 μm
Frame Rate:300 fps
Mono/Color:Color and Mono
Lens Mount:C-mount (CS-Mount can be customized )
Weight(Typical):88g
Dimension (L x W x H):42 mm x 29 mm x 29 mm

Package List:

1 x Industrial Camera (Optional Lens)
1 x I/O Cable
1 x standard Date Cable 3 Meter(Optional inquire length)
