Industrial cameras with resolutions from 300,000 pixels to 150,000,000 pixels, high-quality sensors,long transmission distance, black and white, or color can be selected according to your requirements, all equipped with progressive scan and global exposure technology.

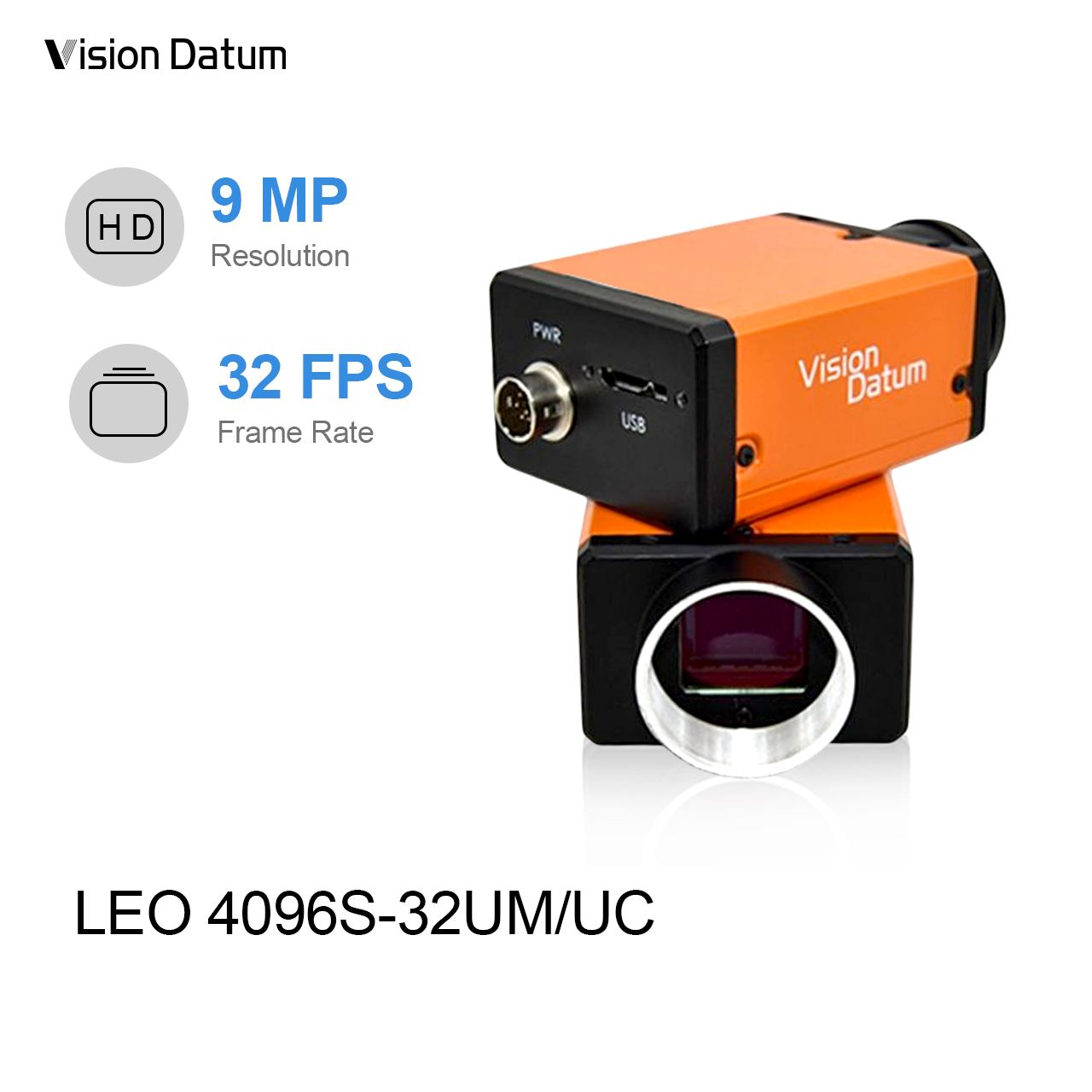

The IMX267 camera is a high-performance machine vision camera with a resolution of 9 million pixels and a frame rate of 30 frames per second (FPS). It features a global shutter, delivering uniform exposure and minimizing distortions in fast-moving scenes.
The IMX267 camera is compatible with GenlCam and USB3 Vision standards, ensuring seamless integration into a wide range of machine vision applications. The camera supports HALCON and Labview programming interfaces, enabling users to customize their machine vision solutions easily and efficiently.
Additionally, the IMX267 camera runs on Windows operating systems, providing maximum flexibility for users. With its high-speed performance and robust design, the IMX267 camera is an excellent choice for a wide range of machine vision applications.
Product Feature
- Resolution 9M.
- Support GenlCam and USB3 Vision.
- Support HALCON、 Labview .
- Support NVIDIA TX1、 TX2；windows；

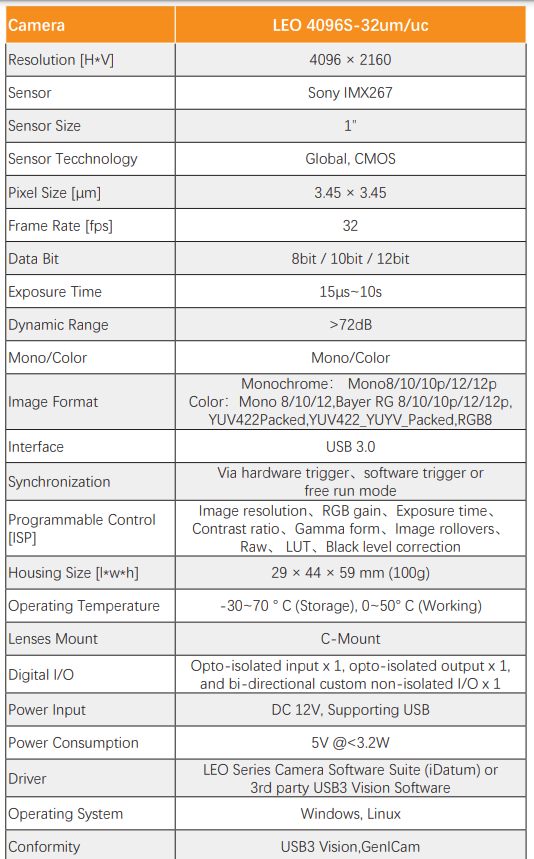

Camera Parameters
Model:LEO 4096S-32UM/UC
Sensor:IMX 267
Shutter:Global Shutter
Sensor Size:1"
Sensor Type:CMOS
Resolution:4096 px x 2160 px
Pixel size:3.45 μm x 3.45 μm
Frame Rate:32 fps
Mono/Color:Color and Mono
Lens Mount:C-mount(CS-Mount can be customized)
SDK:LEO Series Camera Secondary Development Kit（iDatum）or Third-party Software meeting with USB3 Vision Protocol
Operating System:Windows，Linux
Conformity:USB3 Vision and GenICam
Package List:
1 x Industrial Camera (No Include Lens)
1 x I/O Cable
1 x standard Date Cable（Optional inquire length.）
