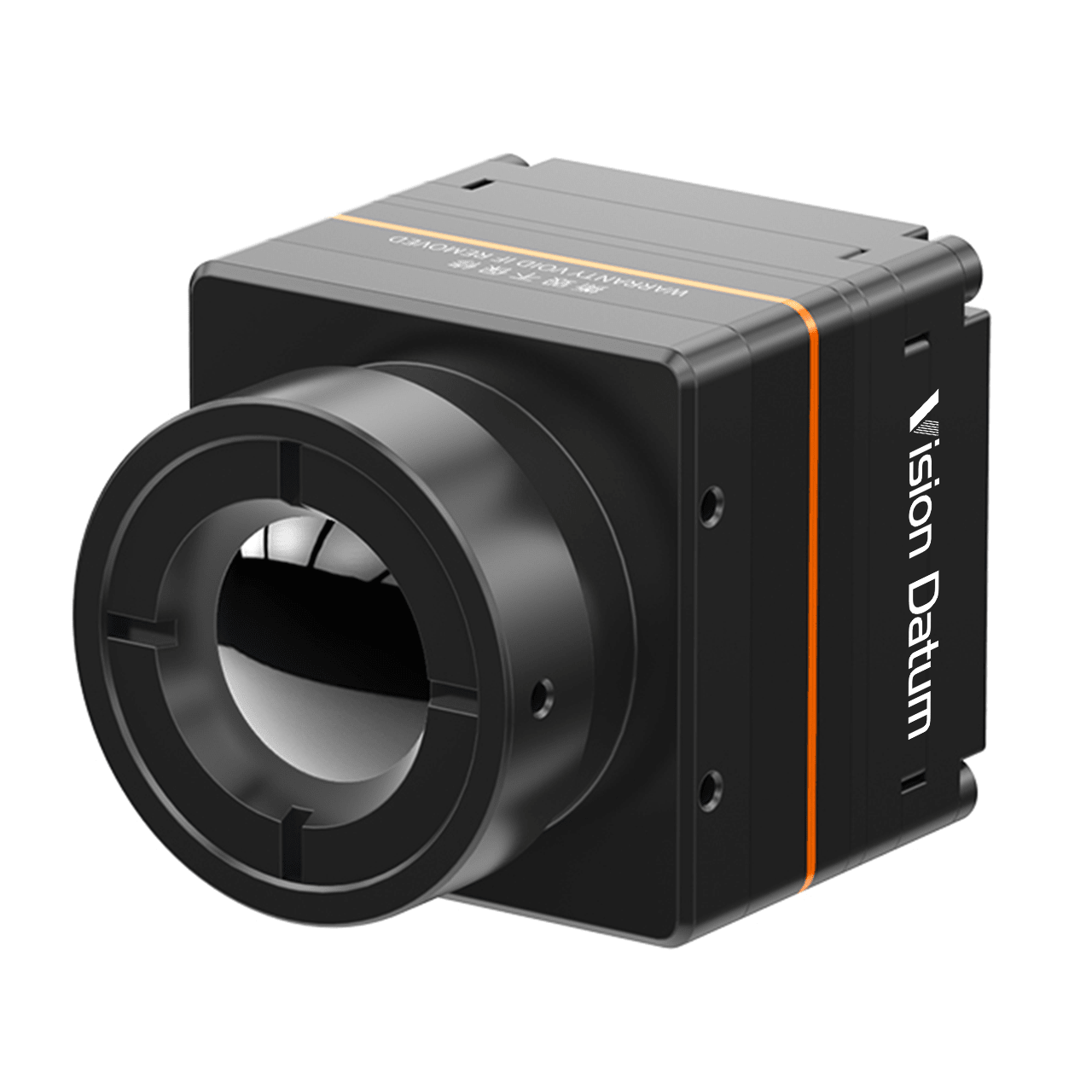

The iRaPix Drone LWIR Camera offers high-performance thermal imaging with a resolution of 640x512 and a digital zoom range of 1.0-8.0x. Designed for drones, it provides precise temperature measurement, making it ideal for aerial inspections, search and rescue operations, and environmental monitoring. Its lightweight, durable design ensures optimal performance in challenging conditions.
Main Features
● 8000 to 14000 nm spectrum
● High thermal sensitivity, typical NETD ≤ 40mK
● Windows/Android/Linux SDK can be provided to achieve full screen temperature measurement
● Regional analysis, high temperature alarm, hot spot tracking, isothermal mode
● Temperature measurement range: -20~+150℃ , 0~+550℃ ,Temperature measurement
accuracy: ± 3 ℃ or ± 3%
● High thermal sensitivity, typical NETD ≤ 40mK
● Windows/Android/Linux SDK can be provided to achieve full screen temperature measurement
● Regional analysis, high temperature alarm, hot spot tracking, isothermal mode
● Temperature measurement range: -20~+150℃ , 0~+550℃ ,Temperature measurement
accuracy: ± 3 ℃ or ± 3%
Product Parameters
|
Model
|
Temp.Meas. |
Digital Zoom
|
Resolution
|
Frame rate
|
|---|---|---|---|---|
|
iRP01BPLWA
|
No | / |
384×288
|
25/30/50
|
|
iRP01BPLWTA
|
Yes/ | / |
384×288
|
25/30/50
|
|
iRP03BPLWA
|
No |
1.0-8.0x ¹
|
640×512
|
25/30
|
|
iRP03BPLWTA
|
Yes |
1.0-8.0x ¹
|
640×512
|
25/30
|
|
iRP03BPLWA-Pro
|
No |
1.0-8.0x
|
640×512
|
25/30
|
|
iRP03BPLWTA-Pro
|
Yes |
1.0-8.0x
|
640×512
|
25/30
|
|
iRP13BPLWA
|
No | / |
1280x1024
|
25/30/50
|
|
iRP13BPLWTA
|
No | / |
1280x1024
|
25/30
|
|
Model
|
Digital Video Interface
|
Communication Interface
|
Analog Video
|
|---|---|---|---|
|
iRP03BPLW(T)A-Pro
|
USB2.0/DVP/BT656/MIPI
|
RS232-TTL/USB2.0
|
/
|
|
iRP13BPLW(T)A
|
DVP8/DVP16/BT.1120
|
RS232-TTL/USB2.0
|
/
|
|
Other
|
USB2.0/DVP/BT.656/LVDS
|
/ |
PAL/NTSC
|
Optional Lenses
|
Model
|
Athermal Lens
|
Motorized Focus Lens
|
Continuous Zoom Lens
|
|---|---|---|---|
|
iRP01BPLWA/iRP03BPLWA
|
4.9/7/9.1/13/19/25/35/50/70mm
|
/ | / |
|
iRP01BPLWTA/iRP03BPLWTA
|
4.9/7/9.1/13/19/25mm
|
/ | / |
|
iRP03BPLW(T)A-Pro
|
9.1/13/25/44.5mm
|
/ | / |
|
iRP13BPLWA
|
14/25/35/50/100mm
|
75/100/150mm
|
28~90mm/30~180mm
|
|
iRP13BPLWTA
|
14/25mm
|
/ |
/
|
Note¹：Model iRP03BPLW(T)A supports digital zoom 1.0-8.0x only with analog interface.
