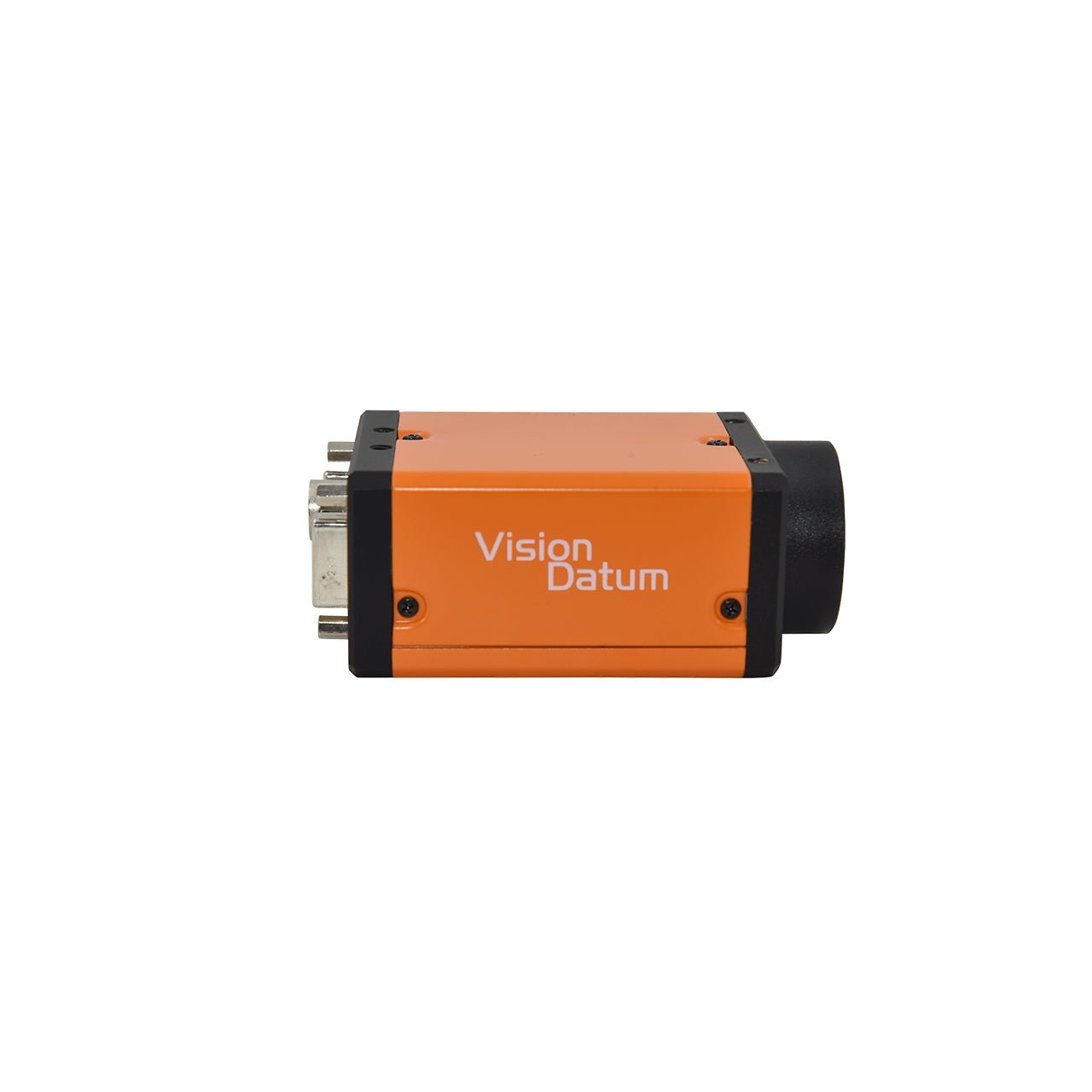

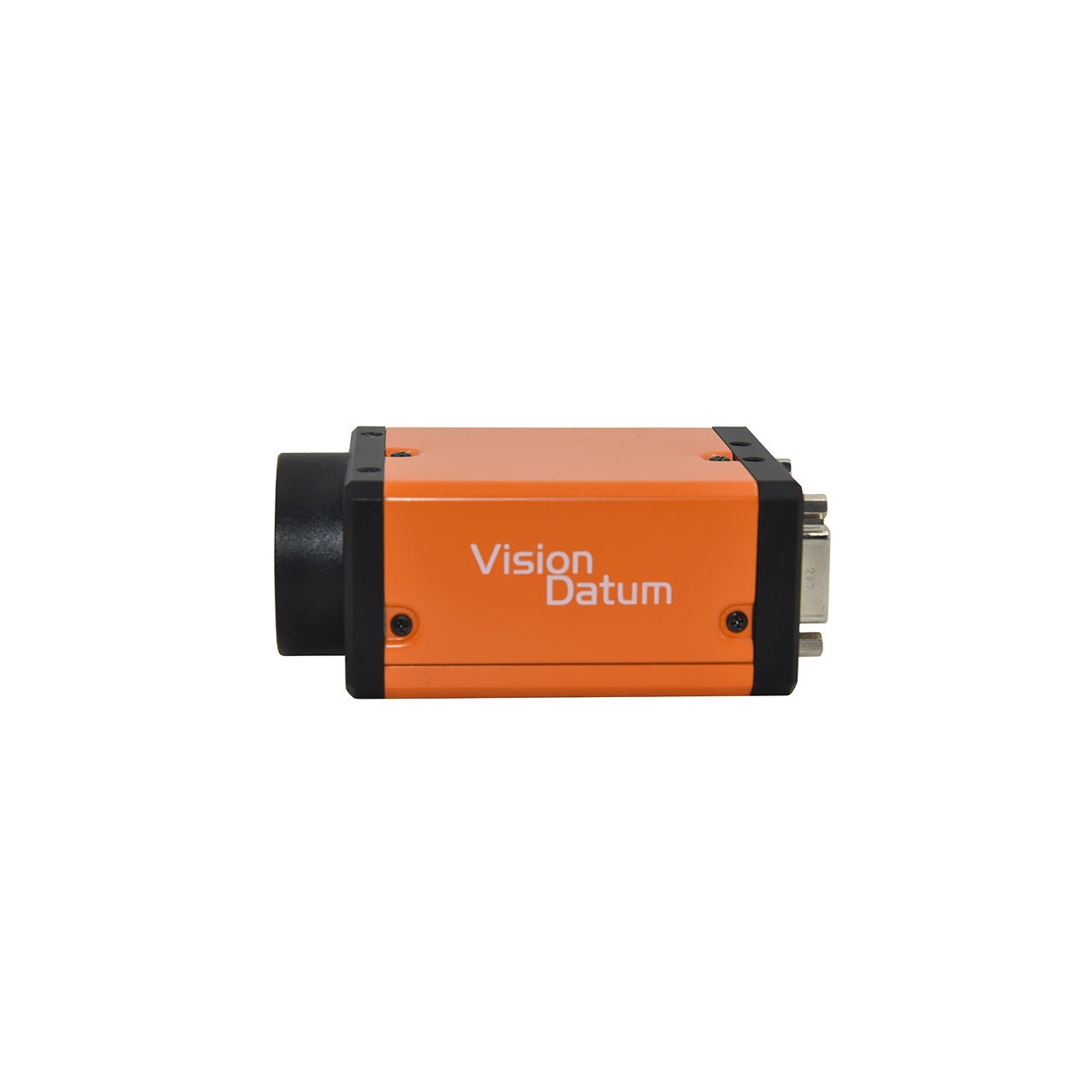

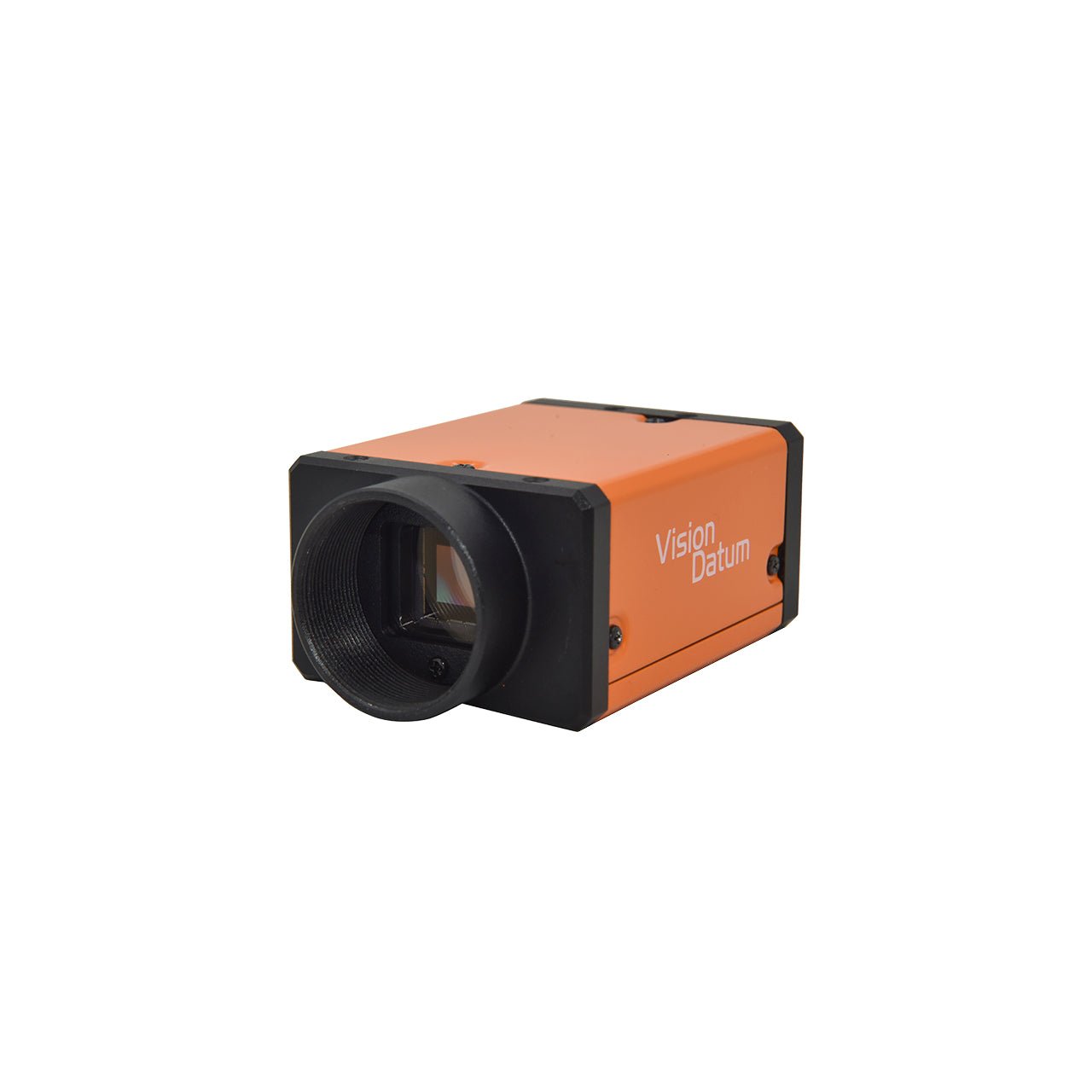

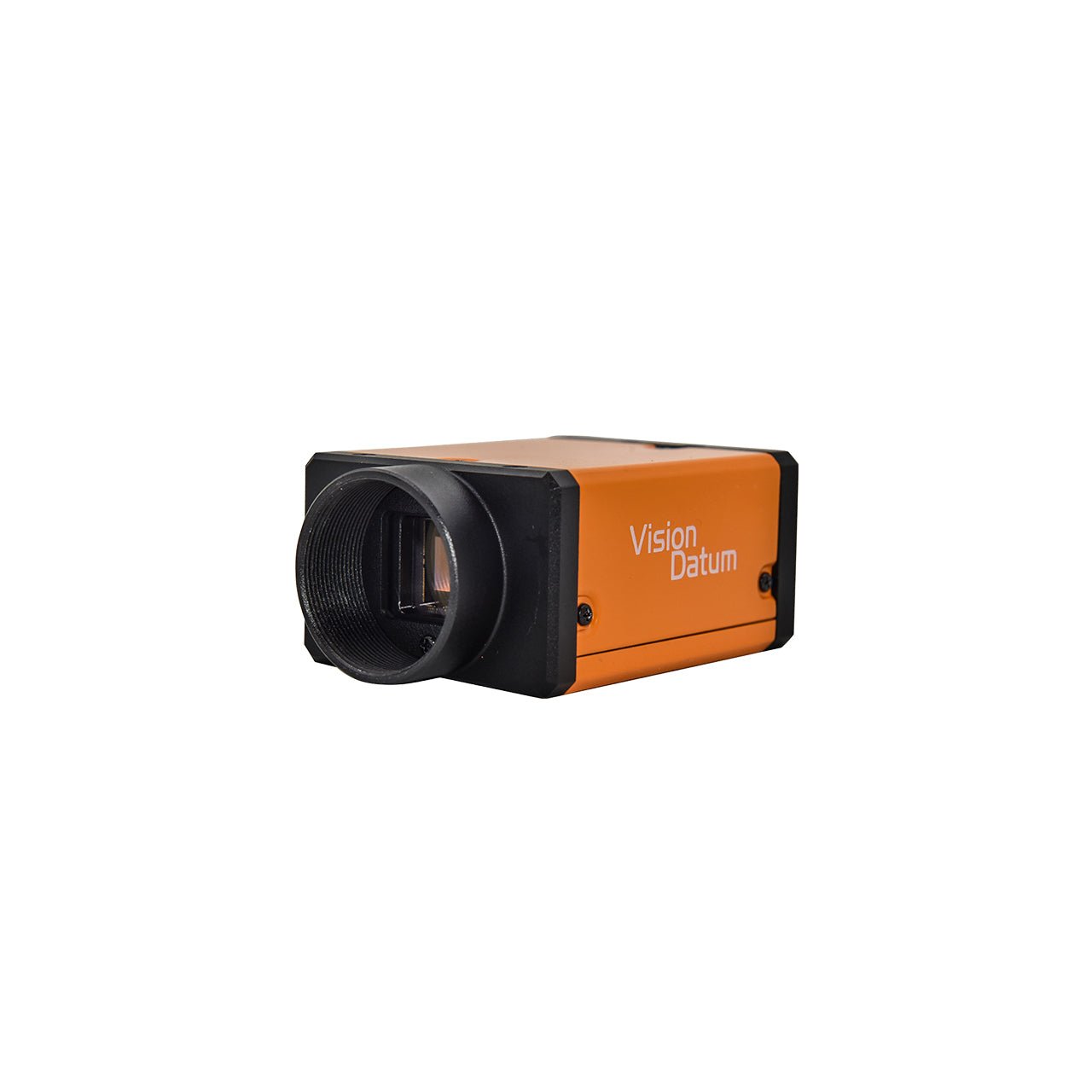

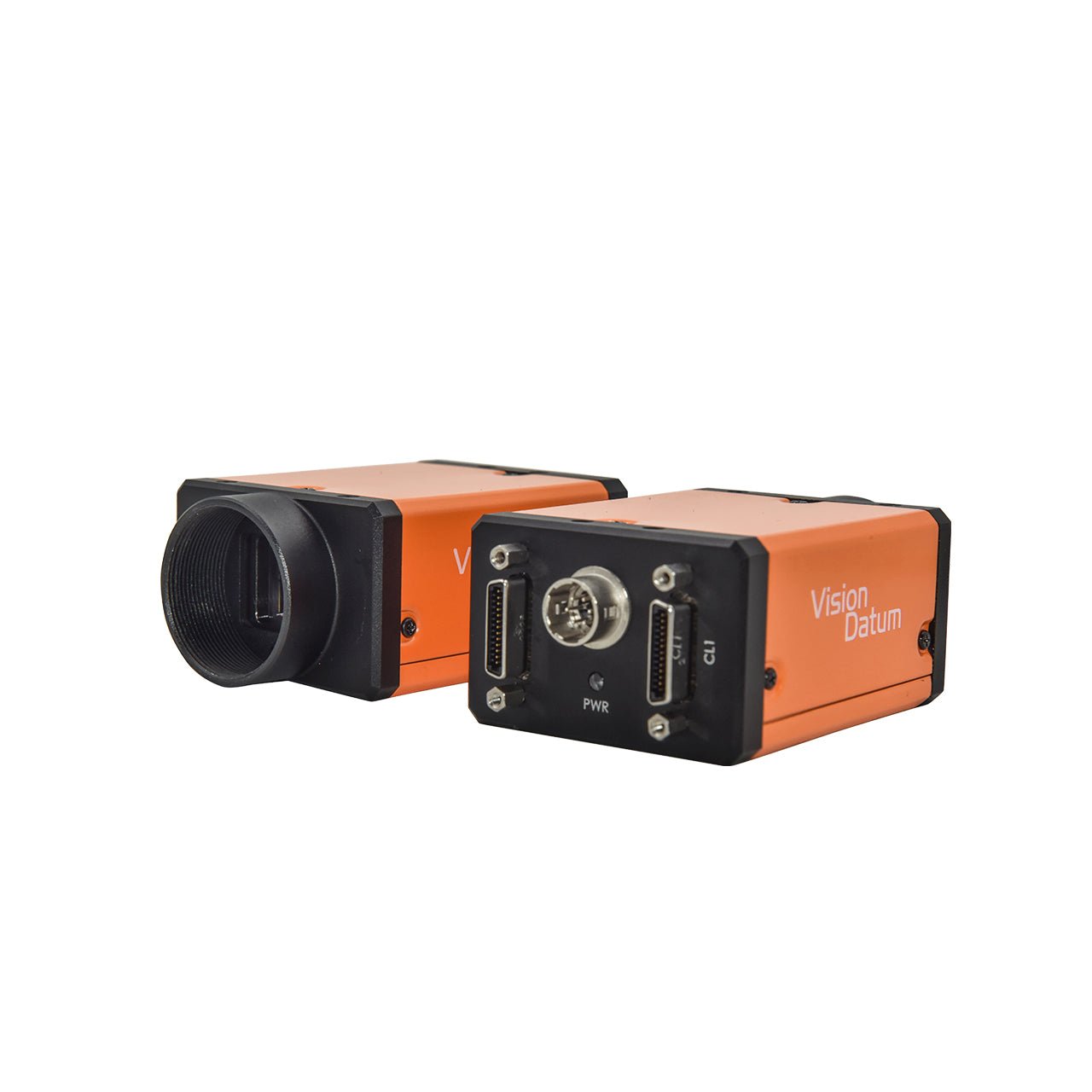

This high-performance camera uses a 25MP GMAX0505 CMOS sensor, providing excellent resolution and a stable imaging speed of 30 frames/second. Global shutter design eliminates motion blur and is suitable for high-speed motion capture. The CameraLink interface ensures high-speed data transmission to meet the needs of industrial applications.
Product Feature
1）25MP @30 fps
2）Compatible with Cameralink protocol and GenICam standard
3）Support Windows operating platform
4）Support PoCL power supply
Camera Parameters

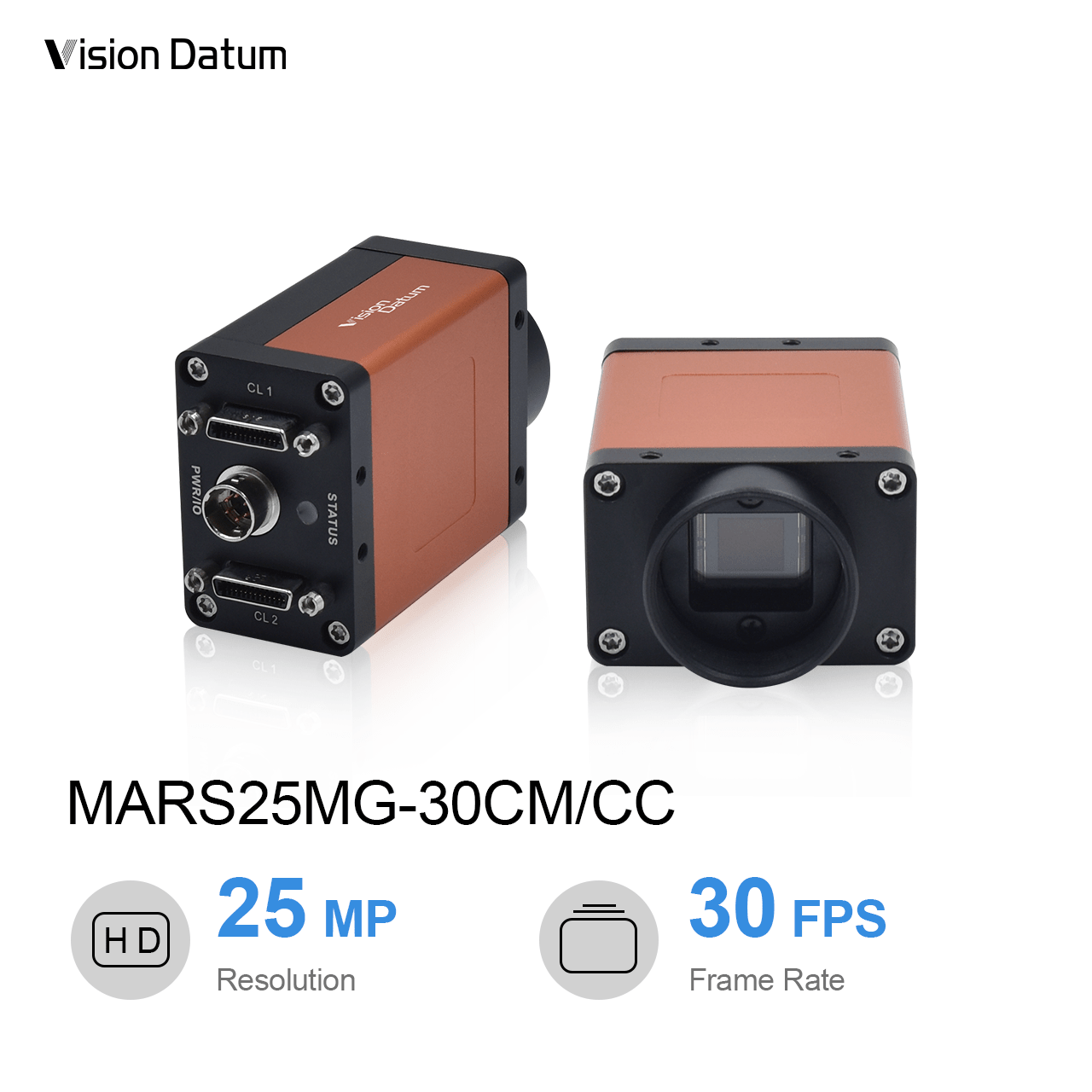

Model:MARS25MG-30CM/CC
Sensor Vendor:Gpixel
Sensor:GMAX0505
Shutter:Global Shutter
Sensor Size:1.1"
Sensor Type:CMOS
Resolution:5120 px x 5120 px
Pixel size:2.5 μm × 2.5 μm
Frame Rate:30 fps
Mono/Color:Mono and Color
Weight（Typical）:100g
Working Temperature: -30 - 50°C（Operating），-30 - 80°C（Storage）
Package List
1 x Camera (No Include Lens)
1 x Cable
