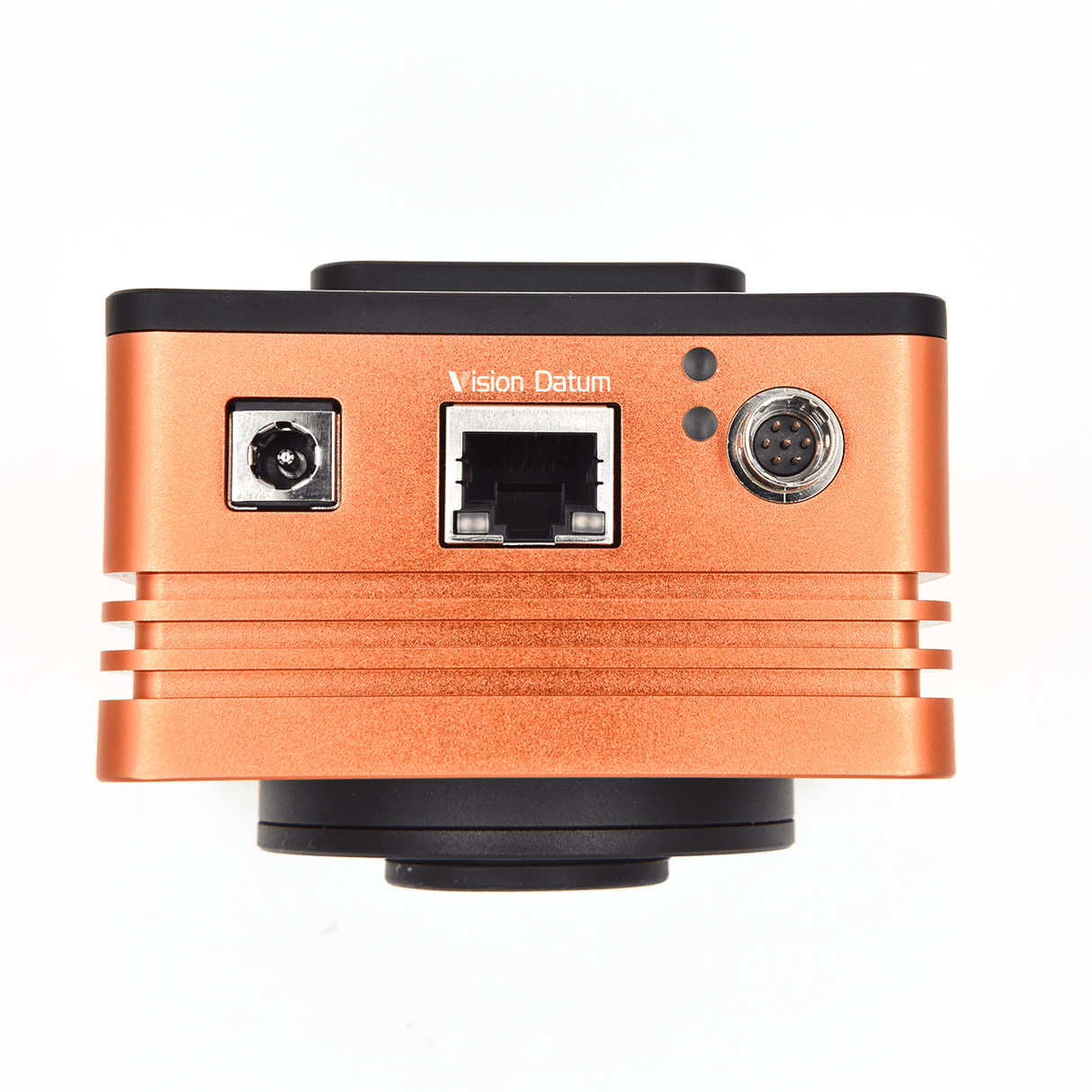

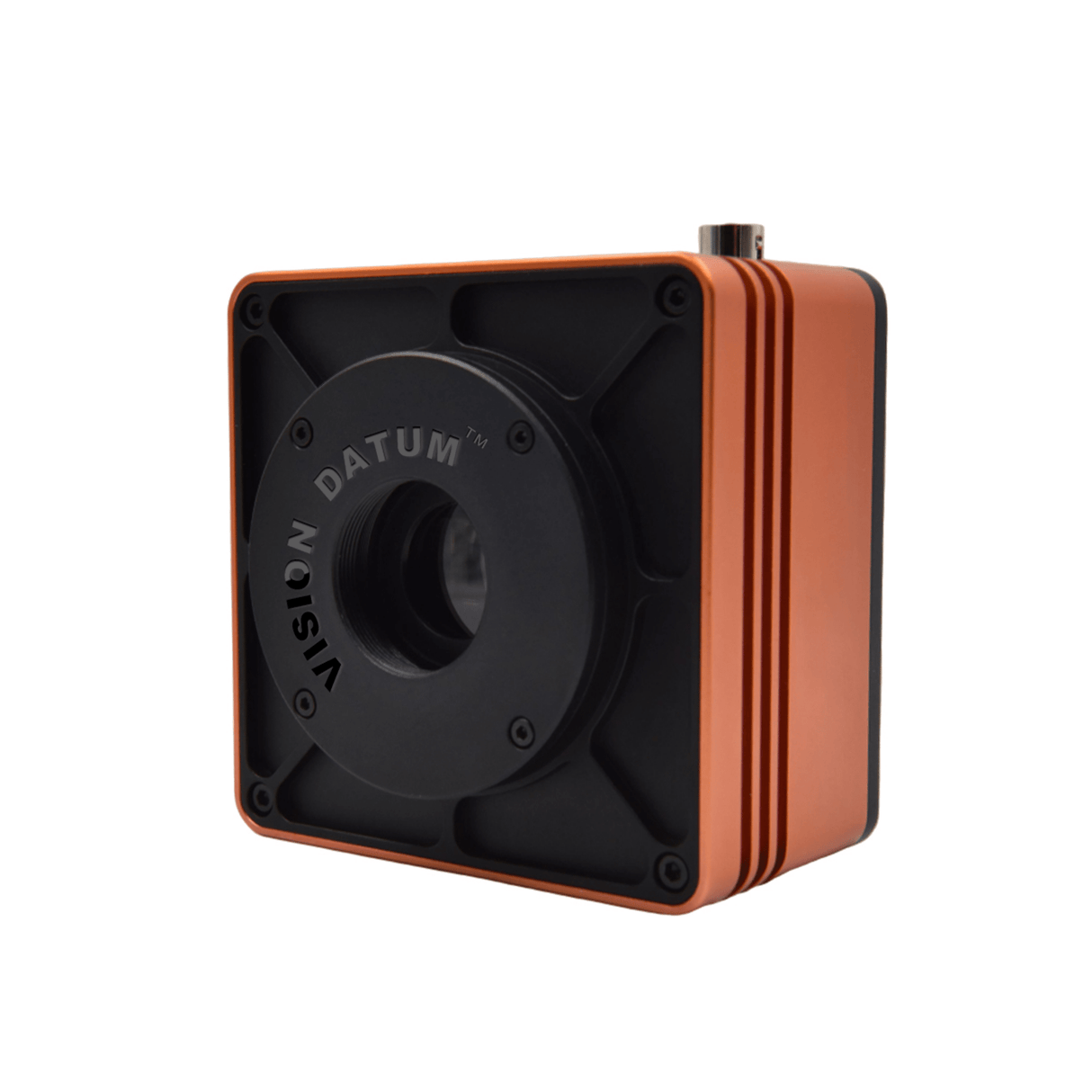

640×512 257.8fps GigE Vision SWIRカメラ 400–1700nm | 冷却機能搭載 Sony IMX991 iBX-SWG991A/J

💳 取引手数料は返金不可です
返金が発行される場合、決済処理プラットフォームはサービス料を返却しません。これらの料金は当ストアではなく、サードパーティプロバイダー（Shopify & PayPal）によって請求されます。手数料は注文金額の一定割合から差し引かれます。

Shopify Payments: 2%の取引手数料は返金不可です。
PayPal: 4.4% + 0.30 USDの手数料を請求しますが、これも返金不可です。

これらの金額は返金総額から差し引かれます。

💬 返金ポリシー – 重要なお知らせ（手数料について）
ご注文のキャンセルが必要な場合があることを理解しています。当ウェブサイトでの返金に関する必要な事項は以下の通りです：

🧾 米国のお客様へのお知らせ
適用される関税のため、ご注文後、会社名とFedEx、UPS、またはDHLのアカウント番号をmarket@visiondatum.comまでメールでお送りください。（米国のお客様のみ）

✅ 注文生産ポリシー
当社のすべての製品は、ご注文に応じて製造または購入に基づいて特別に準備されます。ご注文の前に、お客様のご要望を確認していただくようお願いいたします。ご注文前にご支援やさらなる明確化が必要な場合は、お気軽にお問い合わせください - お手伝いいたします！

Q: What is the spectral range of IMX991?
A: The Sony IMX991 sensor offers a spectral response range of 400nm to 1700nm, covering both the visible and short-wave infrared (SWIR) spectrum. This wide range enables imaging applications such as semiconductor inspection, silicon wafer analysis, spectroscopy, material sorting, and machine vision.

Q: Which sensor does this camera use?
A: This camera is equipped with the Sony IMX991 InGaAs sensor, featuring a resolution of 640 × 512 pixels and a 5μm pixel size. The sensor delivers high sensitivity, low noise performance, and excellent image quality across the 400–1700nm wavelength range.

Q: Can SWIR cameras see through silicon?
A: Yes. SWIR cameras can image through silicon because silicon becomes increasingly transparent at wavelengths above approximately 1100nm. This capability allows SWIR cameras to reveal internal structures, defects, and packaging features that are not visible with standard visible-light cameras, making them ideal for semiconductor inspection and failure analysis.

Q: What is a SWIR camera used for?
A: SWIR cameras are used in a wide range of industrial and scientific applications, including semiconductor inspection, machine vision, spectroscopy, solar cell inspection, laser beam analysis, defense imaging, agricultural monitoring, and quality control. Their ability to capture information beyond the visible spectrum makes them valuable for detecting features that conventional cameras cannot see.

Q: Why use TEC cooling in a SWIR camera?
A: TEC (Thermoelectric Cooling) helps reduce sensor noise and improve image stability by maintaining a controlled detector temperature. This is especially beneficial for long exposure imaging, low-light environments, and precision measurement applications where image quality and consistency are critical.

Q: How do I integrate a SWIR camera into a machine vision system?
A: SWIR cameras can be integrated into machine vision systems through standard industrial interfaces such as USB3.0 or GigE Vision. They can be connected to industrial PCs, image processing software, frame grabbers, and automation platforms. Depending on the application, the camera can be combined with SWIR lenses, illumination sources, and machine vision software for inspection, measurement, and process monitoring tasks.

Q: What is the difference between USB3.0 and GigE SWIR cameras?
A: USB3.0 SWIR cameras provide high-speed data transfer and low latency, making them ideal for laboratory, R&D, and local image acquisition. GigE SWIR cameras support longer cable distances, multi-camera systems, and industrial network integration, making them well suited for factory automation and machine vision applications.

Q: What industries commonly use Sony IMX991 SWIR cameras?
A: Sony IMX991 SWIR cameras are widely used in semiconductor inspection, machine vision, scientific research, solar cell testing, electronics manufacturing, and defense applications. Their 400–1700nm spectral sensitivity enables imaging beyond the visible spectrum for advanced inspection and analysis tasks.
