Description

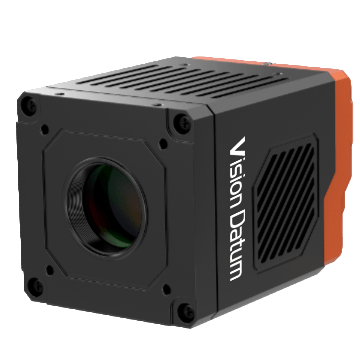

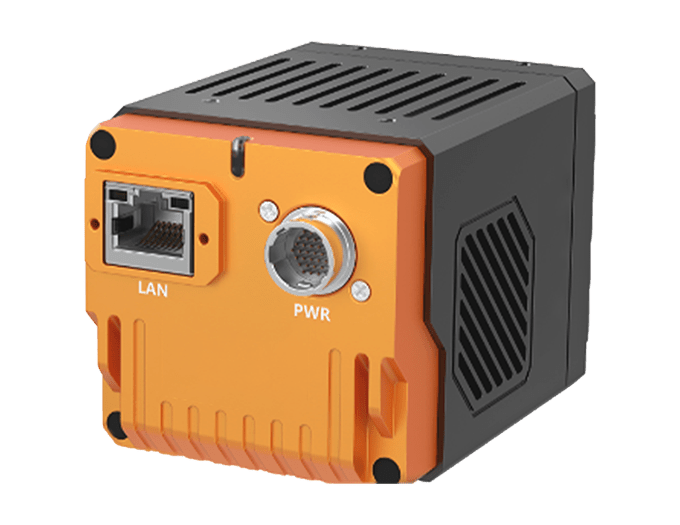

The 400-1700nm InGaAs IMX990 SWIR Area Scan Camera offers powerful imaging capabilities across visible and short-wave infrared wavelengths, utilizing the IMX990 sensor for enhanced sensitivity and precision. Ideal for applications such as material inspection, sorting, and environmental monitoring, this camera captures high-contrast, detailed images even in low-light conditions. Its wide spectral range and InGaAs technology ensure reliability in diverse industrial and scientific environments, making it a versatile tool for advanced imaging requirements. Designed for optimal performance, it enables accurate analysis in complex settings with challenging lighting.
Main Specification
| Model |
Sensor
|
Spectral Range
|
Interface
|
Frame Rate
|
|---|---|---|---|---|
|
iDatum90GSWC130M
|
IMX990
|
400-1700nm
|
GigE
|
91fps
|
|
iBoost134CSWC130M
|
InGaAs
|
400-1700nm
|
CameraLink
|
134fps
|
|
iBoost134USWC130M
|
InGaAs
|
400-1700nm
|
USB3.0
|
134fps
|
|
Resolution
|
1280 x 1024
|
|---|---|
| Pixel Size |
5 μm
|
|
Mount
|
C-Mount
|
| Sensor Size |
1/2”
|
