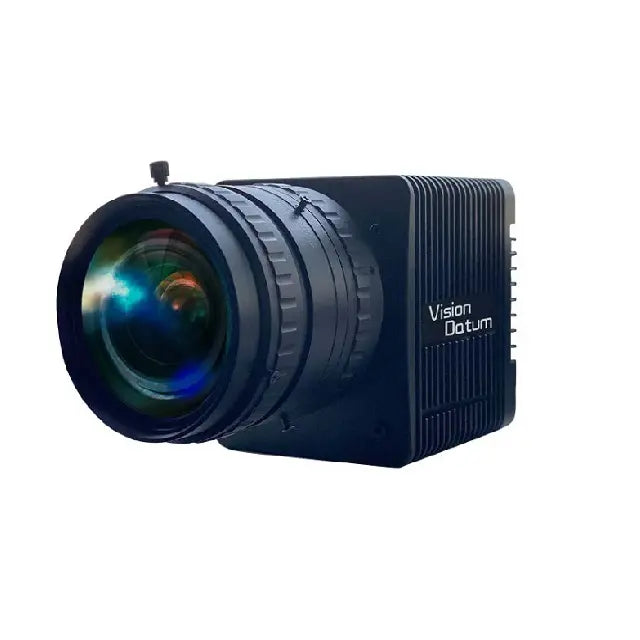

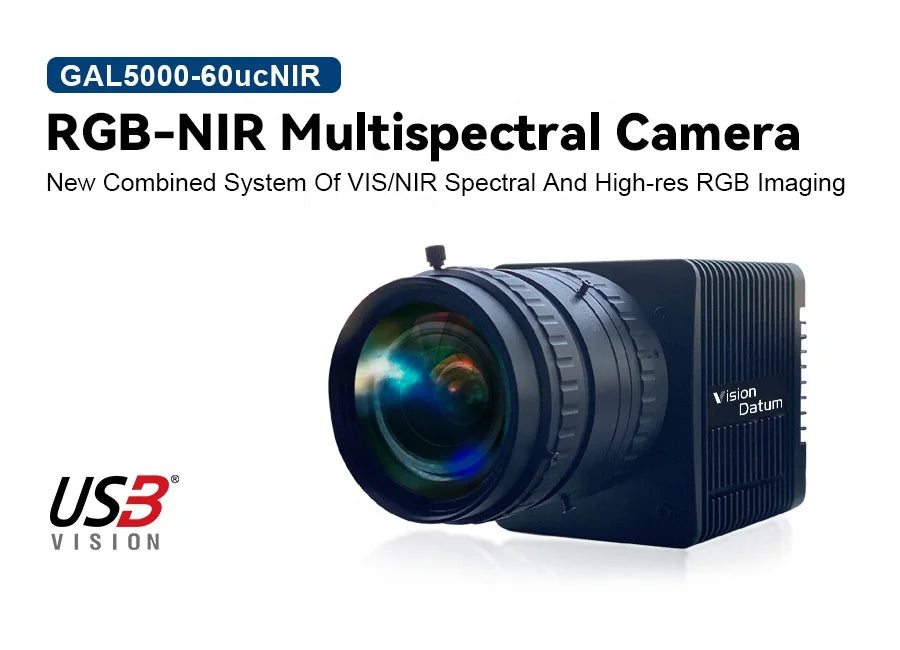

Camera parameters
- Model Name:GAL-5000-60ucNIR
- Resolution(H*V pixels):2592*2056
- Pixel Size（μm):3.4
- Frame Rate(fps):60fps
- Sensor Size:2/3"
- Mono/Color:Color+NIR
- Lens Mount:C-Mount
- Operating System:Windows
- Conformity:USB3 Vision,GenICam
- Internal storage:128Mbytes DDR3
C-MOUNT LENSES
|
Model
|
Focal Length
|
Aperture
|
Mega Pixels
|
TV Distortion
|
Angle of View -D x H x V
|
M.O.D.
|
|
VT-LEM0814CBMP8 |
8.0 mm |
F1.4
|
8 MP
|
<0.1%
|
61.7°× 56.3° × 43.7°
|
0.1
|
|
VT-LEM1216CBMP8
|
12.0 mm
|
F1.6
|
8 MP
|
<0.8%
|
46.6°× 39°× 30.3°
|
0.15
|
|
VT-LEM1614CBMP8
|
16.0 mm
|
F1.4
|
8 MP
|
<0.1%
|
37.3°× 30.3°× 23°
|
0.1
|
|
VT-LEM2514CBMP8
|
25.0 mm
|
F1.4
|
8 MP
|
<0.2%
|
24.6°× 20°× 15°
|
0.1
|
|
VT-LEM3514CBMP8
|
35.0 mm
|
F1.4
|
8 MP
|
<0.8%
|
17.3°× 13.9°× 10.4°
|
0.15
|
|
VT-LEM5014CBMP8
|
50.0 mm
|
F1.4
|
8 MP
|
<0.8%
|
13.04°× 10.46°× 7.86°
|
0.3
|
|
VT-VIRLEN2518MP10-H1
|
25.0 mm
|
F1.8
|
10 MP
|
|
|
|
|
VT-VIRLEN3512MP10-H1
|
35.0 mm
|
F1.2
|
10 MP
|
|
|
|
|
VT-VIRLEN5028MP5-H1
|
50.0 mm
|
F2.8
|
5 MP
|
|
|
|
