BTL-150M 90° Turning Telecentric Lens for Semiconductor Inspection | Φ67.8mm

$4,900.00 $5,445.00

Shipping calculated at checkout.

Ship To Detecting...

Delivery: -

Type

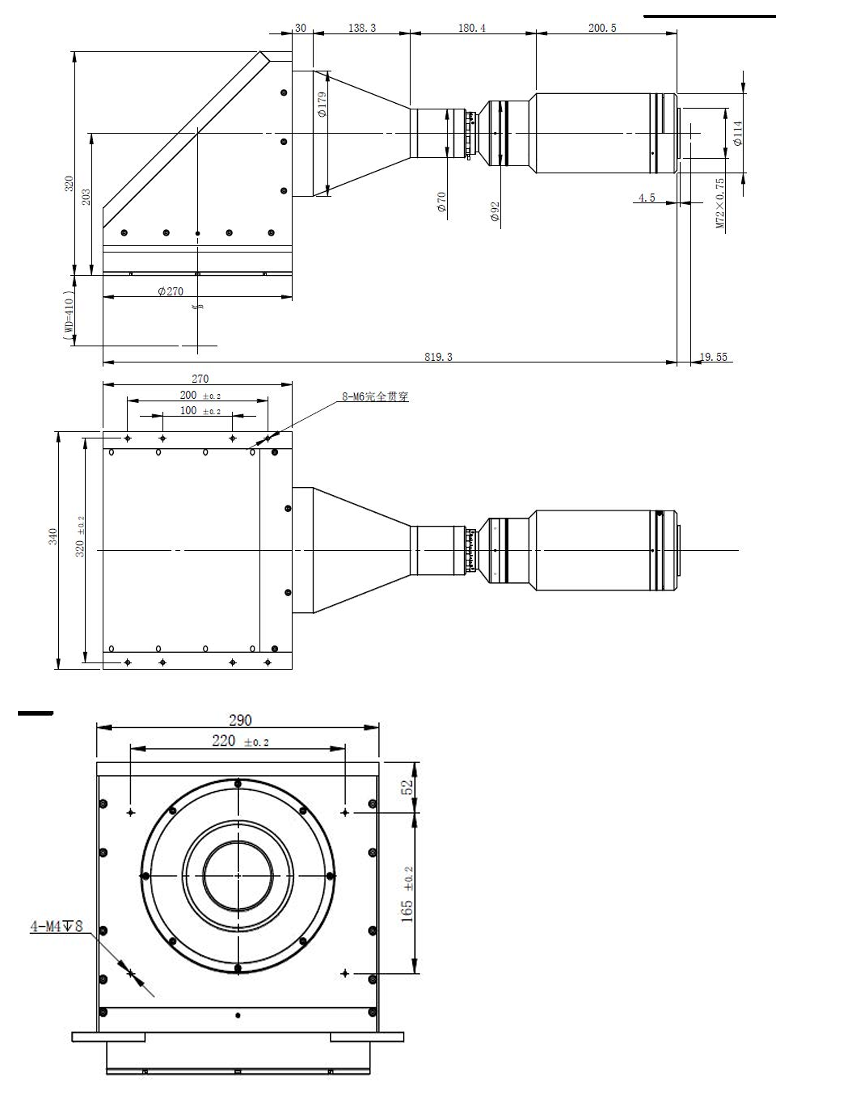

WD:330mm FOV:Φ190mm Mag.0.365x WD:465mm FOV:Φ300mm Mag.0.225x WD:410mm FOV:Φ67mm Mag.0.303x

⚠️ Don’t Order Before Reading This

💳 Transaction Fees Are Non-Refundable
When a refund is issued, please note that payment processing platforms do not return their service fees. These fees are not charged by our store, but by third-party providers (Shopify & PayPal).The handling fee will be deducted from a certain percentage of the order amount.

Shopify Payments: 1% transaction fee is not refundable.
PayPal: Charges a 4.4% + $0.30 USD fee, which is also non-refundable.

These amounts will be deducted from your refund total.

💬 Refund Policy – Important Fee Notice
We understand that sometimes you may need to cancel an order. Here’s what you need to know about refunds on our website:

🧾Notice for U.S. Customers
Due to applicable tariffs, please email your company name and FedEx, UPS, or DHL account number to wcss02@visiondatum.com after placing your order. (U.S. customers only)

✅ Order Production Policy
All of our products are made to order or prepared specifically based on your purchase. We kindly ask customers to confirm their needs before placing an order. If you need assistance or further clarification before ordering, feel free to contact us - we’re here to help!

Delivery & Shipping

Order Processing Time

All orders are processed within 1 business day.

Preparation Time

In-stock items: Ready for quick shipment.
Pre-order items: Typically require around 7 days for preparation. We will notify you promptly after your order.

Shipping Carriers

Orders are shipped via DHL Express, FedEx, or other couriers.

Address Changes

Please ensure your shipping address is correct before placing your order.
Once an order is processed, address changes may not be possible.

Order Notification Emails

Order Confirmation Email (sent after checkout)
Shipping Confirmation Email (includes tracking info)

If you have any questions please email to market@visiondatum.com

Add a stand out message for your customers

Product Description

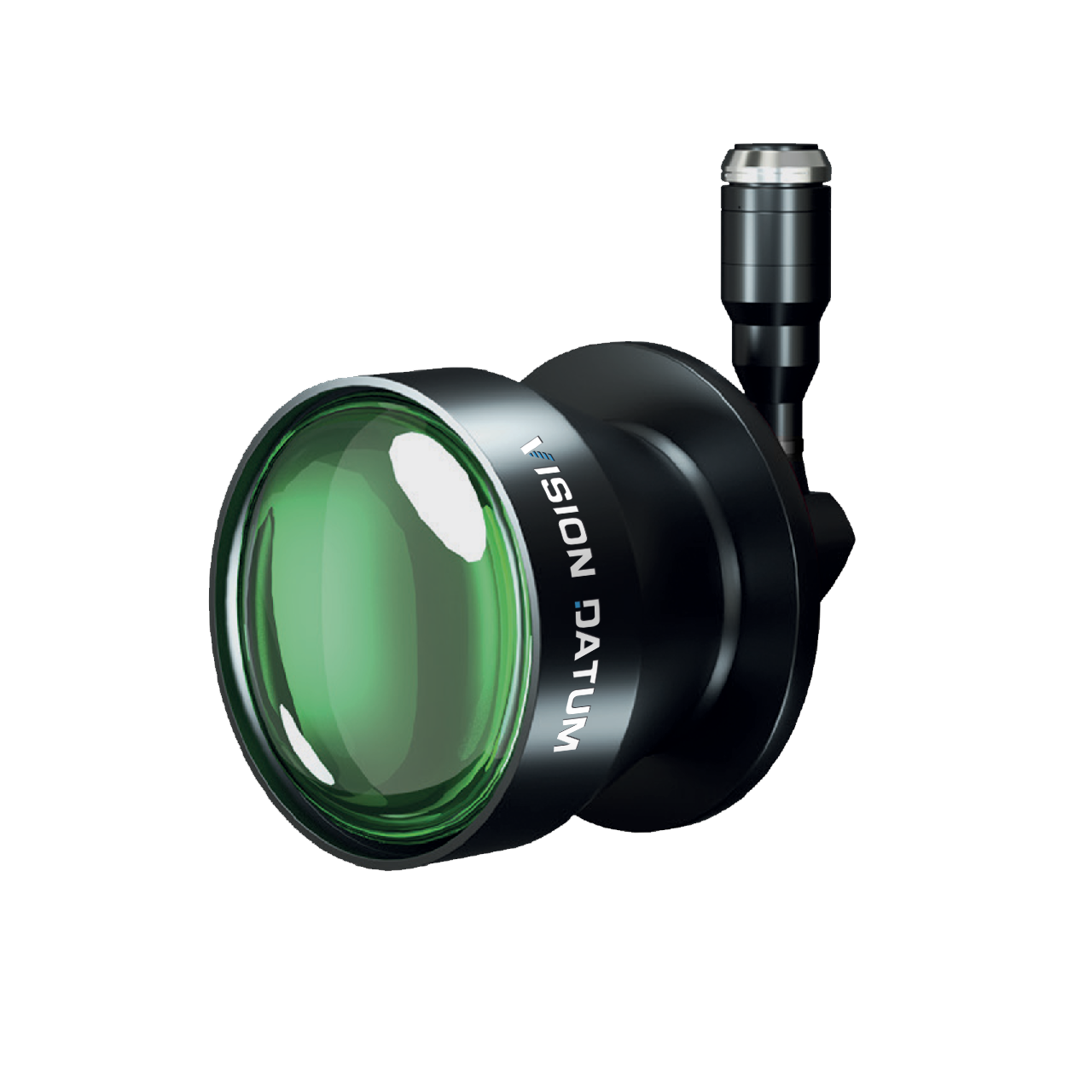

BTL-150M SERIES 90° Turning Telecentric Lens is a high-performance telecentric lens designed for precision machine vision inspection where installation space is limited. With its 90-degree optical path turning design, it enables flexible integration inside compact equipment, multi-axis mechanisms, and confined inspection stations while maintaining stable and distortion-controlled imaging.

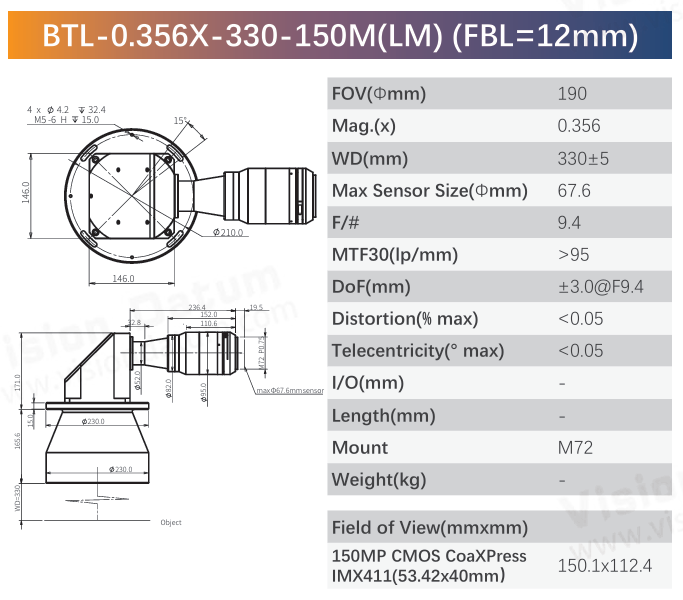

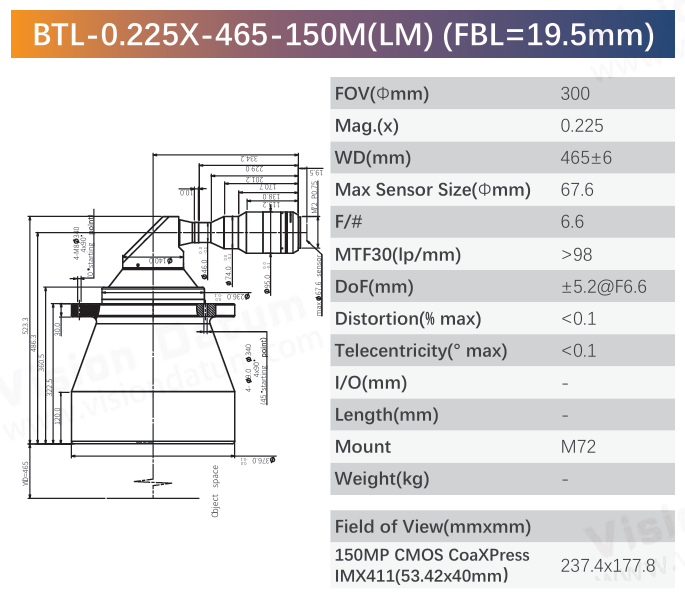

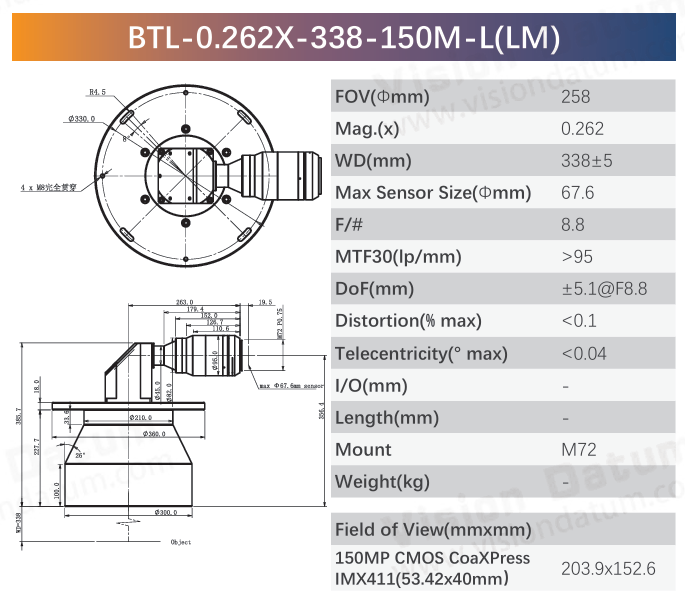

This series supports a maximum sensor size of Φ67.6mm, making it ideal for large-format, high-resolution industrial cameras. To fit different mechanical structures and inspection distances, multiple working distance (WD) options are available: 288mm / 330mm / 338mm / 372mm / 465mm, allowing engineers to optimize optical layout and system integration.

In terms of optical performance, the BTL-150M series delivers excellent high-frequency resolution with Max. MTF30 > 100 lp/mm, ensuring sharp detail reproduction for fine patterns, micro-defects, and precise edge detection. It is especially suitable for demanding applications in the semiconductor industry, including wafer inspection, package inspection, substrate measurement, lead frame inspection, and other high-accuracy metrology tasks.

Key Features & Benefits

90° Turning Design: ideal for space-limited machine vision integration
Large Sensor Support (Φ67.6mm max.): enables large FOV and high-resolution imaging
Multiple WD Options (288–465mm): flexible for different inspection setups
High Resolution Performance: Max. MTF30 > 100 lp/mm for fine detail detection
Telecentric Imaging Advantage: minimizes perspective error for precision measurement
