Add to Cart for Free Shipping

Welcome to Vision Datum Shop!

PAY BY T/T SAVE 3.5% INSTANTLY
1 5
Vision Datum  |  SKU: BTL-0.398X-318-150M(LM)
12% off

BTL-150M 90° Turning Telecentric Lens for Semiconductor Inspection | Φ67.8mm

$4,800.00 $5,445.00
Shipping calculated at checkout.
Delivery Truck

Ship To Detecting...

Delivery: -

Type

Don’t Order Before Reading This

💳 Transaction Fees Are Non-Refundable
When a refund is issued, please note that payment processing platforms do not return their service fees. These fees are not charged by our store, but by third-party providers (Shopify & PayPal).The handling fee will be deducted from a certain percentage of the order amount.

Shopify Payments: 2% transaction fee is not refundable.
PayPal: Charges a 4.4% + $0.30 USD fee, which is also non-refundable.

These amounts will be deducted from your refund total.

💬 Refund Policy – Important Fee Notice
We understand that sometimes you may need to cancel an order. Here’s what you need to know about refunds on our website:

🧾Notice for U.S. Customers
Due to applicable tariffs, please email your company name and FedEx, UPS, or DHL account number to market@visiondatum.com after placing your order. (U.S. customers only)

✅ Order Production Policy
All of our products are made to order or prepared specifically based on your purchase. We kindly ask customers to confirm their needs before placing an order. If you need assistance or further clarification before ordering, feel free to contact us - we’re here to help!

Delivery & Shipping

Order Processing Time

  • All orders are processed within 1 business day.

Preparation Time

  • In-stock items: Ready for quick shipment.
  • Pre-order items: Typically require around 7 days for preparation. We will notify you promptly after your order.

Shipping Carriers

  • Orders are shipped via DHL Express, FedEx, or other couriers.

Address Changes

  • Please ensure your shipping address is correct before placing your order.
  • Once an order is processed, address changes may not be possible.

Order Notification Emails

  • Order Confirmation Email (sent after checkout)
  • Shipping Confirmation Email (includes tracking info)

If you have any questions please email to market@visiondatum.com

FAQ

Q: What is the advantage of a 90° turning telecentric lens?
A: The 90° optical path design allows flexible installation in space-constrained equipment while maintaining accurate, low-distortion telecentric imaging.

Q: What sensor size does the BTL-150M series support?
A: The series supports image circles up to Φ67.6 mm, making it suitable for large-format, high-resolution industrial cameras.

Q: What working distance options are available?
A: Multiple working distances are available, including 288 mm, 330 mm, 338 mm, 372 mm, and 465 mm, allowing flexible system integration.

Q: Why use a telecentric lens for precision measurement?
A: Telecentric optics minimize perspective error and distortion, ensuring accurate measurements and repeatable inspection results.

Q: What applications are the BTL-150M series suitable for?
A: It is ideal for wafer inspection, semiconductor packaging, substrate measurement, lead frame inspection, and precision metrology.

Q: What optical performance does the lens provide?
A: The series delivers excellent image quality with MTF30 at 100 lp/mm, enabling detection of fine patterns and micro-defects.

Q: Is the BTL-150M suitable for compact machine vision systems?
A: Yes. Its 90° turning design makes it ideal for multi-axis mechanisms and inspection stations with limited installation space.

BTL-150M SERIES Telecentric Lens

Product Description

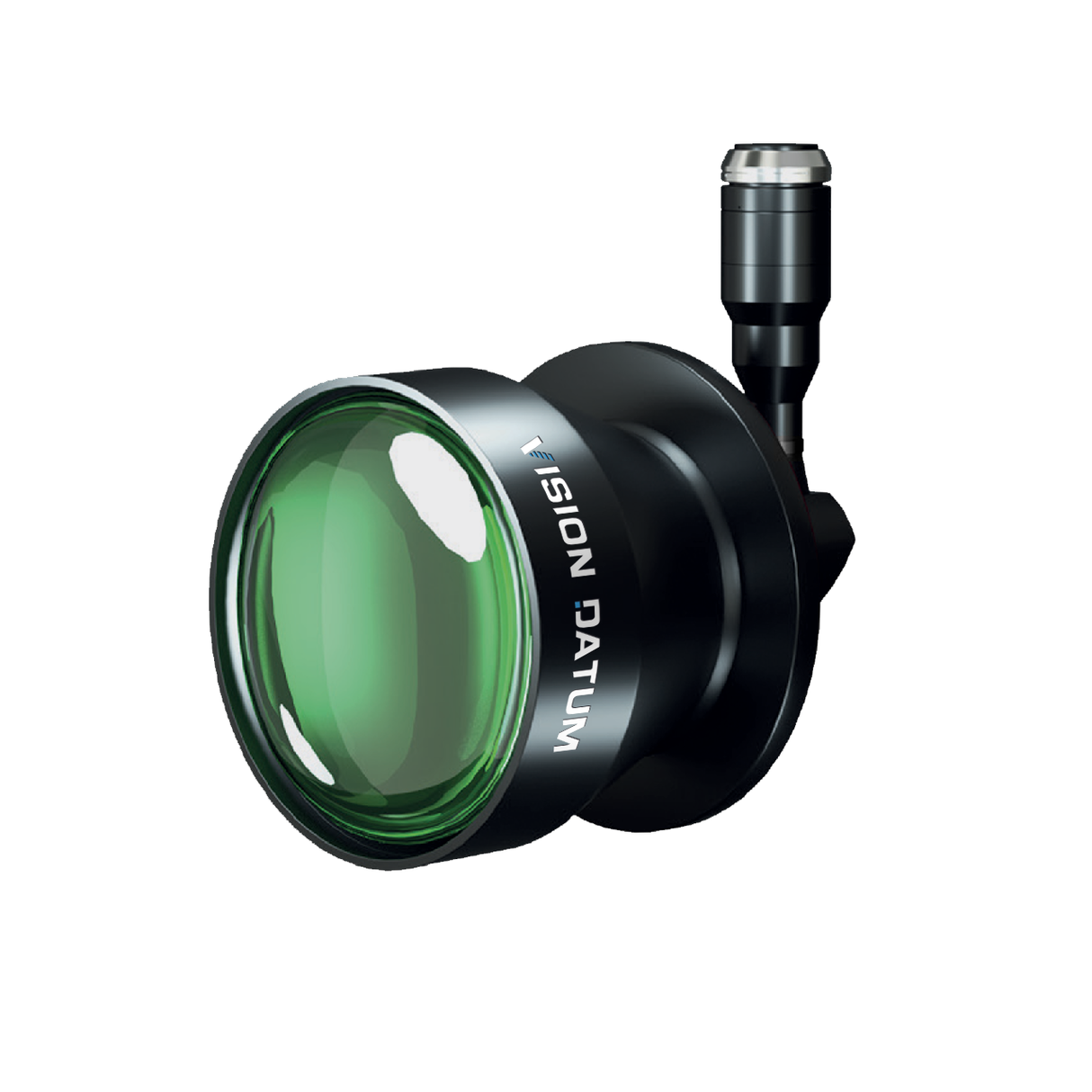

BTL-150M SERIES 90° Turning Telecentric Lens is a high-performance telecentric lens designed for precision machine vision inspection where installation space is limited. With its 90-degree optical path turning design, it enables flexible integration inside compact equipment, multi-axis mechanisms, and confined inspection stations while maintaining stable and distortion-controlled imaging.

This series supports a maximum sensor size of Φ67.6mm, making it ideal for large-format, high-resolution industrial cameras. To fit different mechanical structures and inspection distances, multiple working distance (WD) options are available: 288mm / 330mm / 338mm / 372mm / 465mm, allowing engineers to optimize optical layout and system integration.

In terms of optical performance, the BTL-150M series delivers excellent high-frequency resolution with Max. MTF30 & 100 lp/mm, ensuring sharp detail reproduction for fine patterns, micro-defects, and precise edge detection. It is especially suitable for demanding applications in the semiconductor industry, including wafer inspection, package inspection, substrate measurement, lead frame inspection, and other high-accuracy metrology tasks.

Key Features & Benefits

  • 90° Turning Design: ideal for space-limited machine vision integration
  • Large Sensor Support (Φ67.6mm max.): enables large FOV and high-resolution imaging
  • Multiple WD Options (288–465mm): flexible for different inspection setups
  • High Resolution Performance: Max. MTF30 & 100 lp/mm for fine detail detection
  • Telecentric Imaging Advantage: minimizes perspective error for precision measurement

Specifications

Φ67.6mm M72-Mount 90 Degree Turning Telecentric Lens

Model FOV Mag. WD F/# MTF30

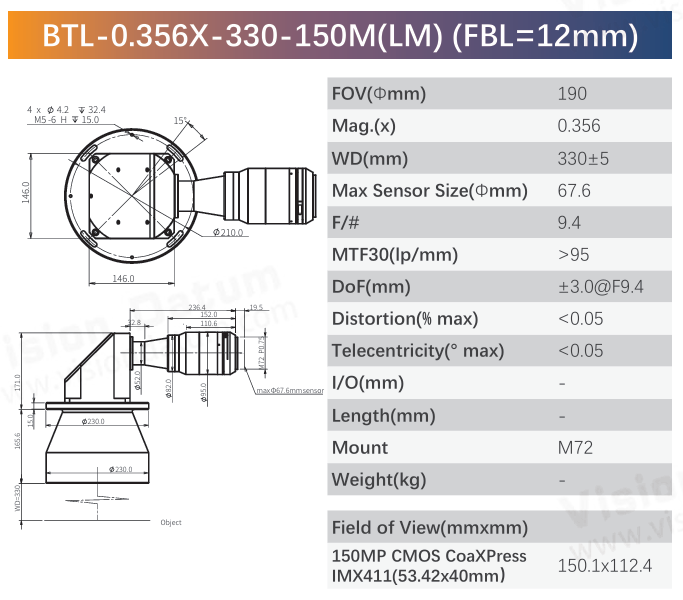

BTL-0.356X-330-150M(LM) (FBL=12mm) Φ190mm 0.356x 330mm±5 F9.4 >95lp/mm
BTL-0.398X-318-150M(LM) (FBL=12mm)
 Φ170mm
0.398x
318mm±5
 F9.4
>88lp/mm

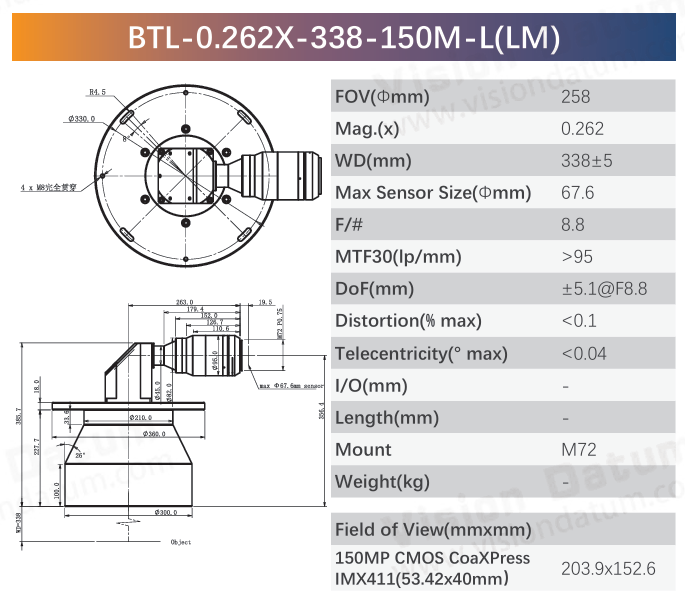

BTL-0.262X-338-150M-L(LM) Φ258mm 0.262x 338mm±5 F8.8 >95lp/mm

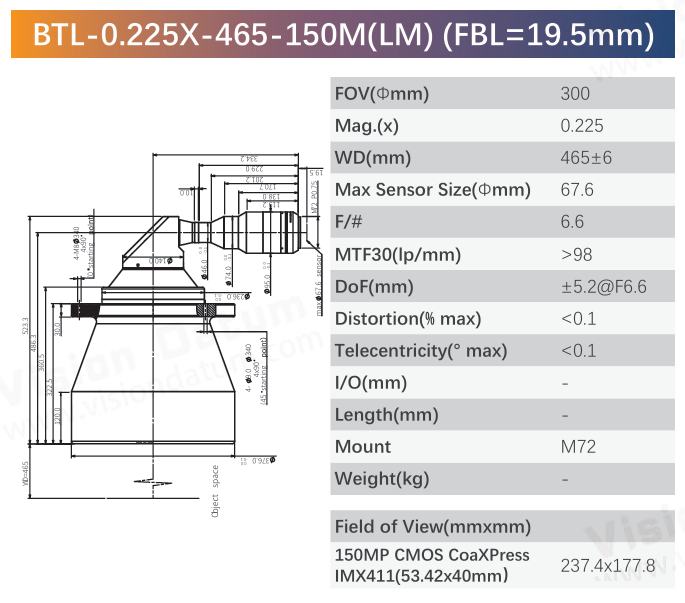

BTL-0.225X-465-150M(LM) (FBL=19.5mm) Φ300mm 0.225x 465mm±6 F6.6 >98lp/mm

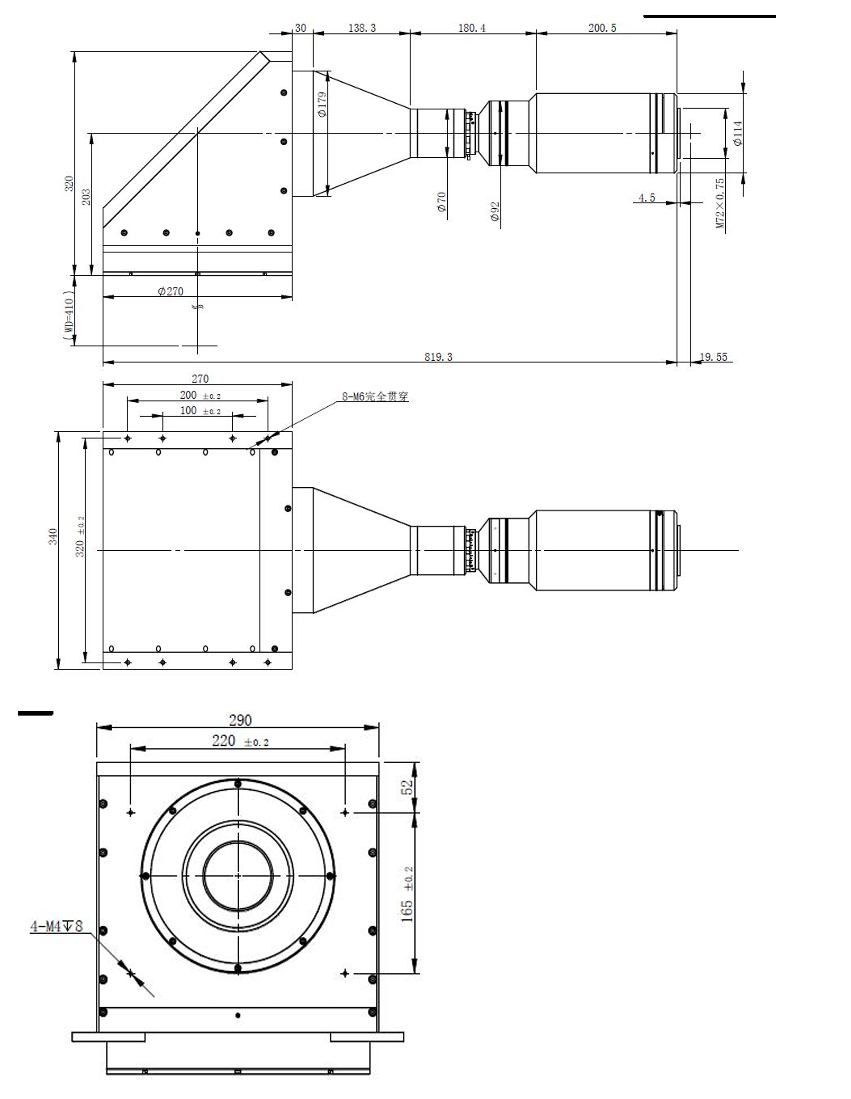

BTLO3-67-R9E Φ67mm 0.303x 410mm±3 F6.2 >100lp/mm

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Back to top
