Feature
■ Built-in high-precision positioning, measurement, calibration, logic, defect detection,OCR and code reading algorithms
■ Output results via RS-232 and Ethernet, and cooperate with other processes via I/O
■ Optional multi-color light source
■ Supports mechanical autofocus, multi-focal length lens optional
ST Cameras:
Visual Tools:
Count: Pattern count, spot count, edge count
Existence: Pattern existence, spot existence, circle existence, line existence
Measurement: Brightness analysis, contrast measurement, diameter measurement, width measurement, line angle, point to line measurement, color size(Color Only)
Recognition: Color recognition(Color Only), color contrast(Color Only), OCR
Location: Match location, match calibration
Logic tool: If module, condition judge, logic judge, character, comparison, calculator
Defect detection: Exception detection
Parameters:

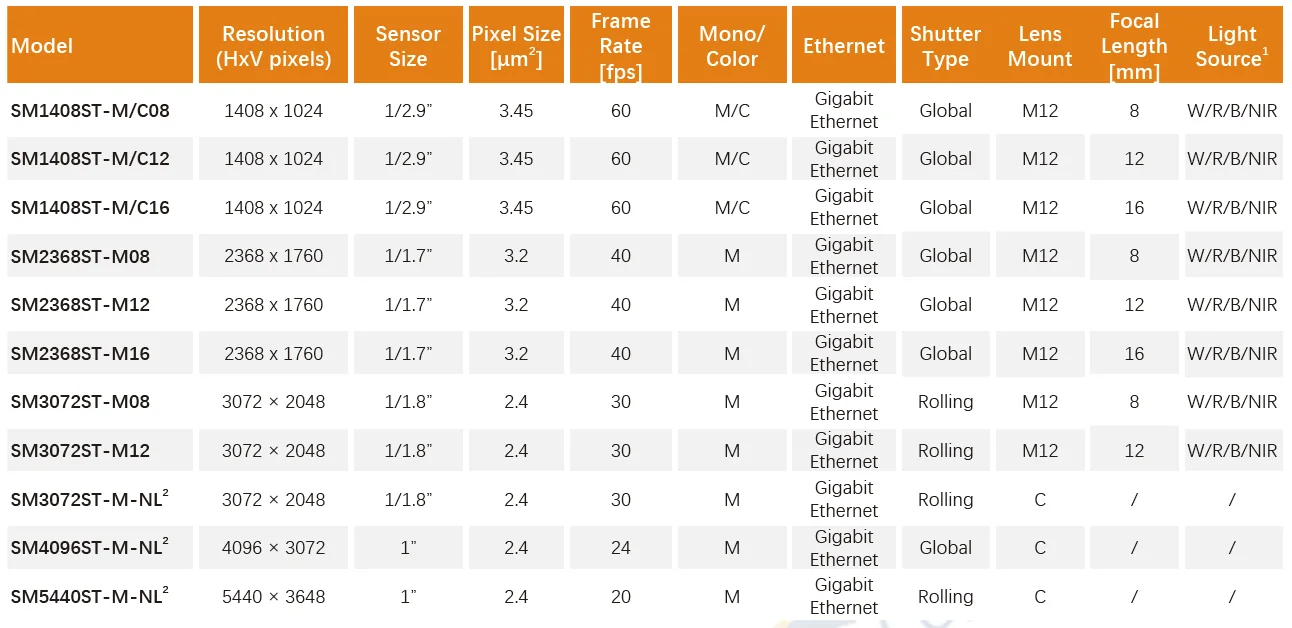

Product Specifications
Model
|
SMxxxxST-M-NL
|
Pixel Size [μm2]
|
2.4 × 2.4
|
Mono/ Color
|
Mono
|
Lens Mount
|
C-Mount
|
Focal Length [mm]
|
/
|
Light Source1
|
/
|
Note 1: It is equipped with 14 white LEDs by default, and 48 high-brightness LEDs are optional; the near-infrared light source is only
suitable for Mono cameras.
Note 2: Without light source and without lens.
Equipped with transparent lens cover by default, polarization or infrared filter lens cap is optional.(Note 2 models are only equipped with a
transparent cover)
suitable for Mono cameras.
Note 2: Without light source and without lens.
Equipped with transparent lens cover by default, polarization or infrared filter lens cap is optional.(Note 2 models are only equipped with a
transparent cover)
Dimensions

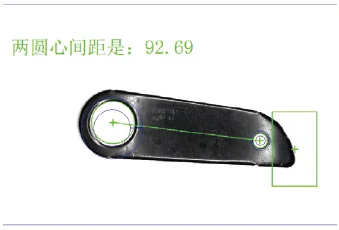

Applications
Brightness Analysis, Contrast Measurement,OCR, Color Contrast(Color Only),Match Location, Match Calibration,Exception Detection,DL Classification, DL Object Detection,etc.
