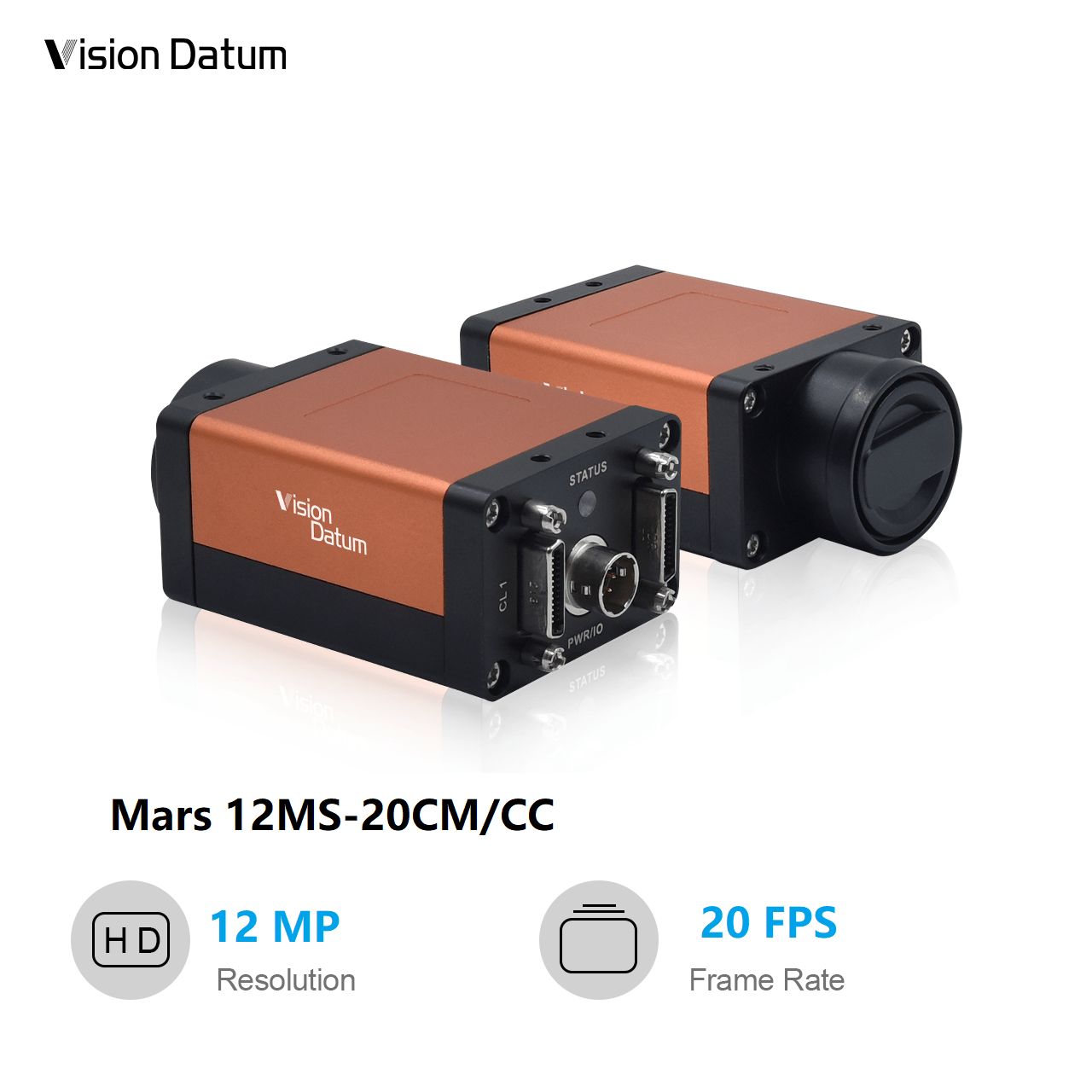

Mars12MS-20cm/cc Camera (Camera Link)
12MP @ 20fps High-Speed Industrial Camera
The Mars12MS-20cm/cc is a compact, high-performance industrial camera designed for demanding machine vision applications. Featuring a high resolution 12 megapixels, it delivers exceptional image quality and reliability. Built with the Sony IMX304 sensor, this camera ensures excellent sensitivity, low noise, and stable performance even in challenging environments.
Fully compliant with the Camera Link protocol and GenICam standard, it offers seamless integration into existing vision systems.
Product Feature
1)12MP @20fps
2)Compatible with Cameralink protocol and GenICam standard
3)Support triggering via CameraLink frame grabber
4)Support Windows operating platform
5)Support DC 24V power supply

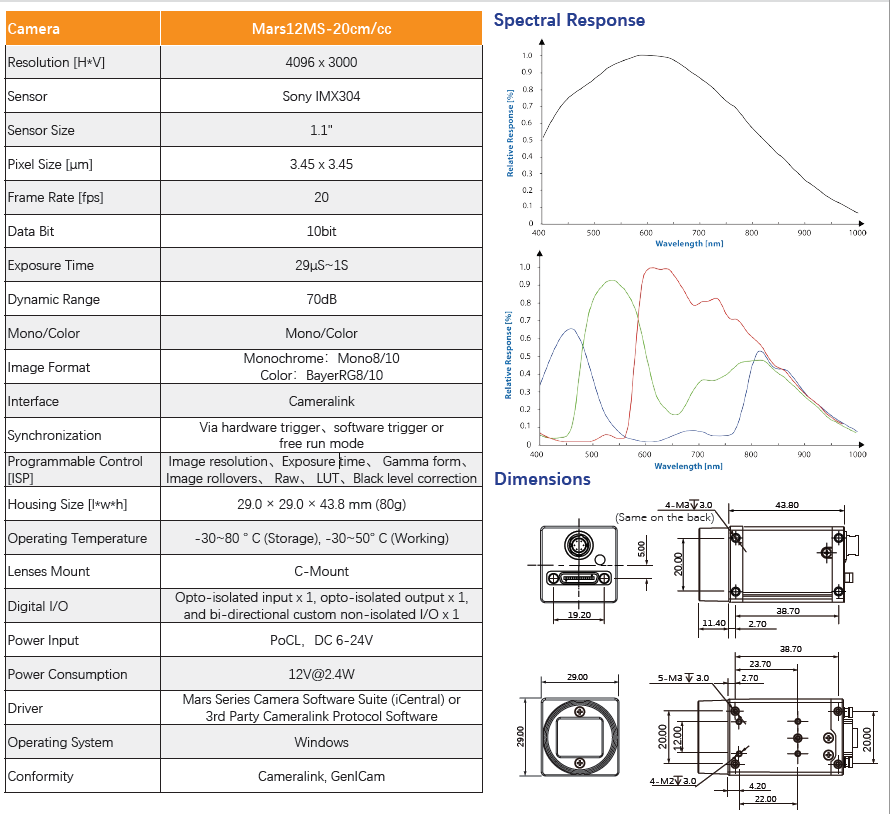

Camera Parameters
| Model | Mars12MS-20cm/cc |
| Sensor Vendor | Sony |
| Sensor | IMX304 |
| Shutter | Global Shutter |
| Sensor Size | 1.1" |
| Sensor Type | CMOS |
| Resolution | 4096 px x 3000 px |
| Pixel size | 3.45 μm x 3.45 μm |
| Frame Rate | 20fps |
| Data Bit | 10bit |
| Exposure Time | 29μS~1S |
| Dynamic Range | 70dB |
| Mono/Color |
Mars12MS-20cc(Color) Mars12MS-20cm(Mono) |
| Image Format | Monochrome：Mono8/10 Color：BayerRG8/10 |
| Lens Mount | C-mount |
| Programmable Control [ISP] |
Image resolution、Exposure time、 Gamma form、Image rollovers、 Raw、 LUT、Black level correction |
| Power Consumption | 12V@2.4W |
| Power Input | PoCL，DC 6-24V |
| Housing Size [l*w*h] | 29.0 × 29.0 × 43.8 mm (80g) |
| Operating System | Windows |
| Conformity | Cameralink, GenICam |
| Driver | Mars Series Camera Software Suite (iCentral) or 3rd Party Cameralink Protocol Software |
| Storage Temperature | -30℃～ +80℃ |
| Operating Temperature | -30℃～ +50℃ |
1.1" Industrial Lens
| Model | Focal Length | Sensor Size | F-No. [F/#] | WD [mm] | Resolution | FOV | Distortion | Filter Screw Size | Wavelength [nm] | Mount |
| VT-LEM0618MP20-H1.1 | 6mm | 1.1" | F1.8 | 100–∞ | 20MP | 118.2° × 104.91° × 86.2° | 2.30% | - | 400-1000 | C |
| VT-LEM0814MP20-H1.1 | 8mm | 1.1" | F1.4 | 100–∞ | 20MP | 98.4° × 84.8° × 68° | 5.30% | M58*0.75 | 400-1000 | C |
| VT-LEM1228CBMP20-H1.1 | 12mm | 1.1" | F2.8 | 100–∞ | 20MP | 57° ×45° ×66.7° | <1.50% | - | 420-1150 | C |
| VT-LEM1628CBMP20-H1.1 | 16mm | 1.1" | F2.8 | 100–∞ | 20MP | 46.3° ×36° × 55.4° | <0.50% | M35.5*0.5 | 420-1150 | C |
| VT-LEM2528CBMP20-H1.1 | 25mm | 1.1" | F2.8 | 100–∞ | 20MP | 30.4° ×23° ×37.6° | <0.10% | M35.5*0.5 | 420-1150 | C |
| VT-LEM3528CBMP20-H1.1 | 35mm | 1.1" | F2.8 | 200–∞ | 20MP | 22.6° ×17° ×28.3° | <0.02% | M35.5*0.5 | 420-1150 | C |
| VT-LEM5028CBMP20-H1.1 | 50mm | 1.1" | F2.8 | 300–∞ | 20MP | 15.9° ×11.9° ×19.9° | <0.04% | M35.5*0.5 | 420-1150 | C |
Package List
1 x Camera (Lenses and cables need to be purchased separately)
MARS12MS-20CM/CC Download
